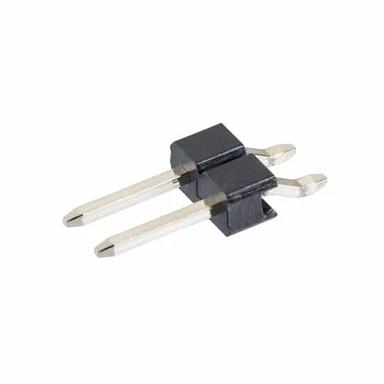

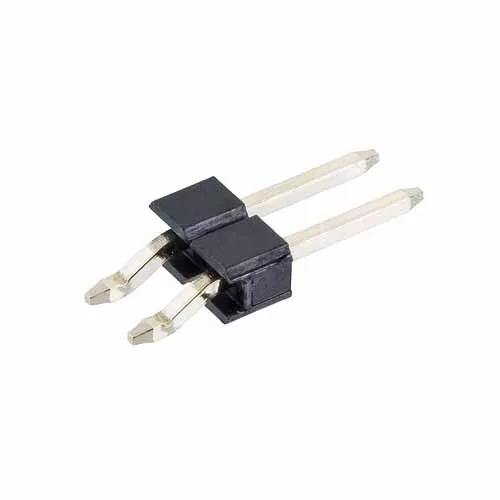

Single Row Surface Mount, 6.0mm mating pin, 2.5mm molding profile - 2 contacts.
Gold finish on contact area and termination.
Packaged in tubes.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Mating Pin Size
0.64mm square
Number of Rows
1
Connector Orientation
Horizontal
Country of Origin
CN
Side Stackable
No
Number of Signal Contacts
2
Operating Temperature
-40°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
3A per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Cuttable
Yes
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 9T
Base Material of Contact
Brass
Flammability Rating
UL94V-0
Packaging Style
Tube
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
2.54mm (0.1")
Weight
0.115g
Dimensions
5.08 x 11.50 x 2.50
Height of Connector above PCB
2.50mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M20-889.pdf
C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)
Product Information
Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
Product Datasheet - INDESS range: M20 and M22 (BBi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M20-889 series
RoHS - M20-8890245
