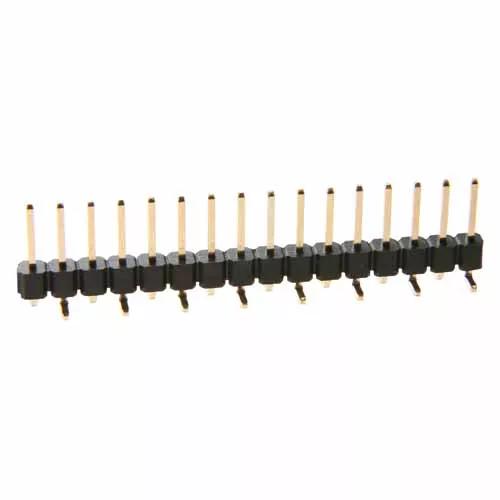

Product Characteristics

• End Stackable:

  No

• Mating Pin Size:

  0.64mm square

• Number of Rows:

  1

• Connector Orientation:

  Vertical

• Country of Origin:

  TW

• Side Stackable:

  No

• Number of Signal Contacts:

  8

• Operating Temperature:

  -40°C to +105°C

• RoHS Status:

  RoHS Compliant (2015/863/EU) with no Exemption required

• Current Rating:

  3A max per contact

• Soldering Data:

  Max Solder Temperature: 260°C for 10 seconds

• Polarised:

  No

• Cuttable:

  Yes

Materials

• Finish / Plating on Contact Surface:

  100% Tin over Nickel

• Housing Material:

  Polyamide (Nylon) 6T

• Base Material of Contact:

  Brass

• Flammability Rating:

  UL94V-0

• Packaging Style:

  Tape and Reel

• Finish / Plating on Termination:

  Gold

• Housing Colour:

  Black

Dimensions

• Contact Pitch:

  2.54mm (0.1")

• Weight:

  0.732g

• Dimensions:

  20.32 x 5.08 x 9.93

• Height of Connector above PCB:

  9.93mm
