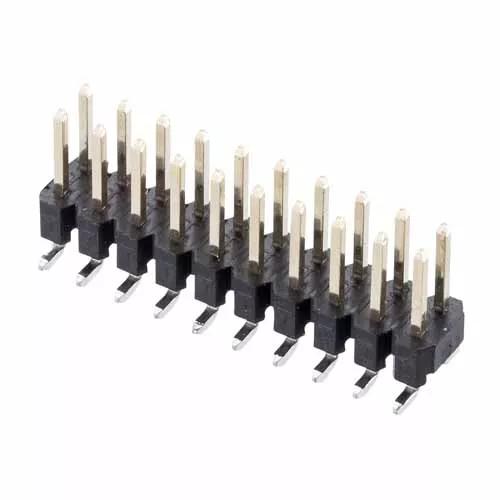

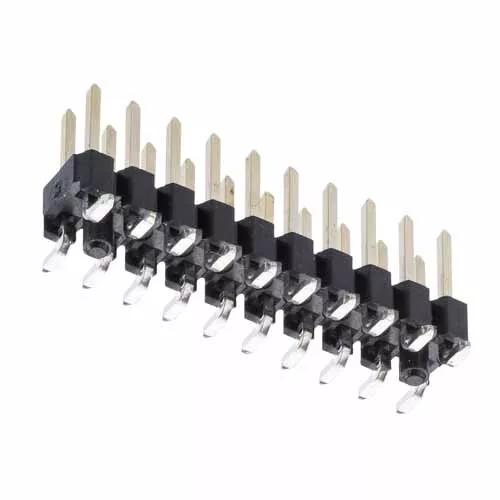

M20-8751042R

10+10 Pos. Male DIL Vertical SMT Conn. (T+R)

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Double Row Surface Mount with location pegs, 5.8mm mating pin height – 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination.
  • Packaged in Tape & Reel, with Pick & Place caps.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

1.541g

Overall Dimensions (L x W x D) in mm:

25.40 x 7.20 x 10.44

Height of Connector above PCB:

9.93mm

Availability

665 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 600
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 65

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required
