Home > M20-8751042
Active Product

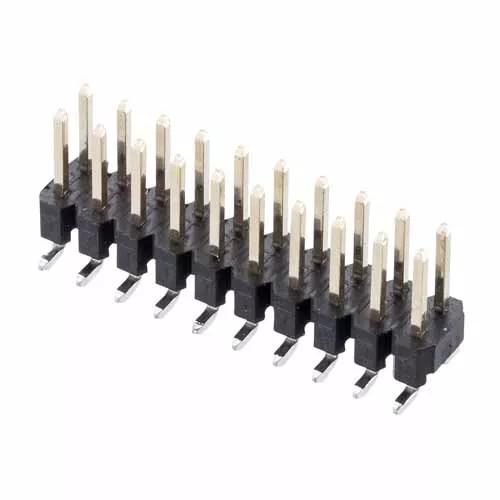

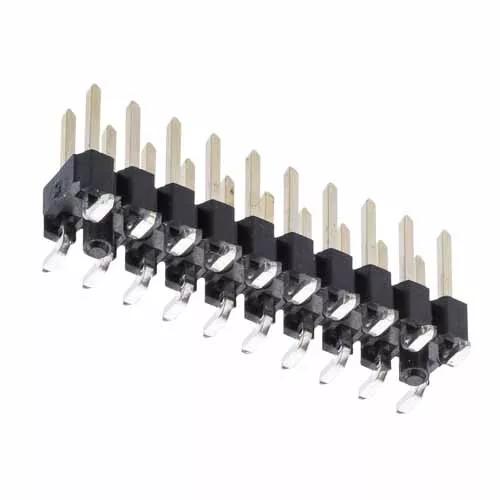

M20-8751042

10+10 Pos. Male DIL Vertical SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

Add to Favorites

Loading…   Check availability

5 similar products View products

Traceparts account required

Product Description

  • Double Row Surface Mount with location pegs, 5.8mm mating pin height – 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination.
  • Packaged.in tubes.

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.218g

Overall Dimensions (L x W x D) in mm:

25.40 x 7.20 x 10.44

Height of Connector above PCB:

9.93mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
