Active Product

M20-8750742R

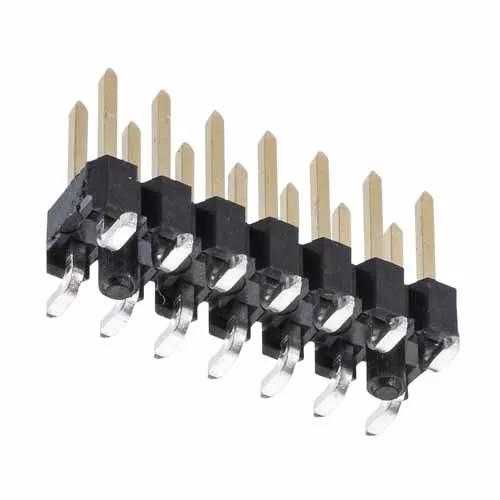

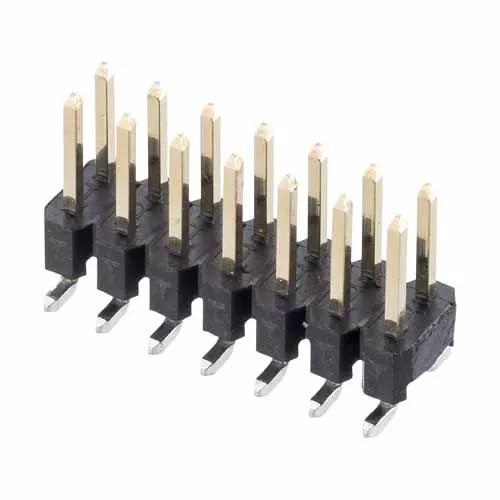

7+7 Pos. Male DIL Vertical SMT Conn. (T+R)

2.54mm (0.1") Pitch PCB Connector - M20 Series

Order Sample

Add to Favorites

300 in stock Check availability

5 similiar products View products

Traceparts account required

Product Description

Double Row Surface Mount with location pegs, 5.8mm mating pin height – 14 contacts (7+7).
Gold finish on contact area, Tin finish on termination.
Packaged in Tape & Reel, with Pick & Place caps.

M20-8750742R - 7+7 Pos. Male DIL Vertical SMT Conn. (T+R)

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Individual Part Weight:

1.06g

Overall Dimensions (L x W x D) in mm:

17.78 x 7.20 x 10.44

Height of Connector above PCB:

9.93mm
