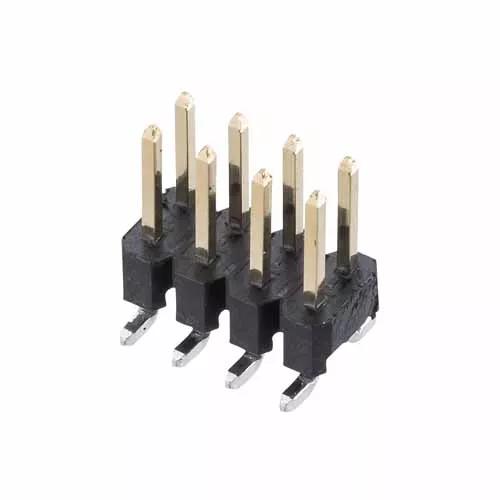

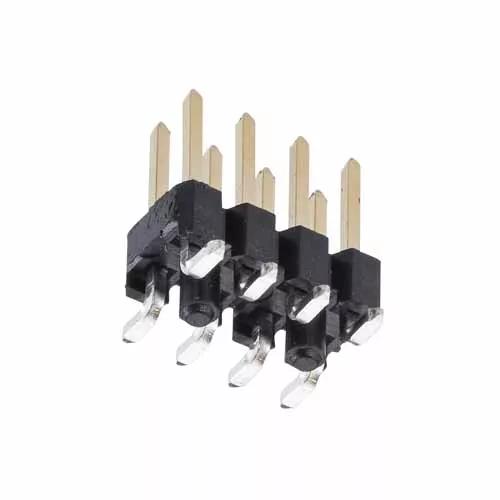

4+4 Pos. Male DIL Vertical SMT Conn.
2.54mm (0.1") Pitch PCB Connector - M20 Series
7,862 in stock Check availability
4 similiar products View products
- Double Row Surface Mount with location pegs, 5.8mm mating pin height – 8 contacts (4+4).
- Gold finish on contact area, Tin finish on termination.
- Packaged.in tubes.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
3A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
10.16 x 7.20 x 10.44
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
