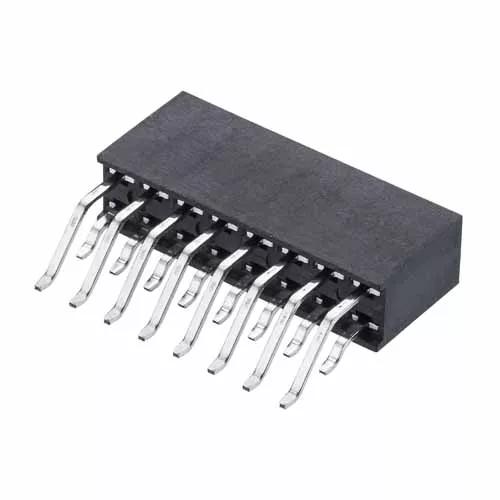

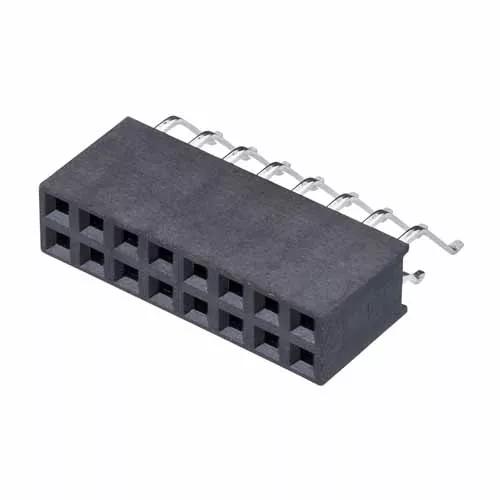

8+8 Pos. Female DIL Horizontal SMT Conn. (T+R)
2.54mm (0.1") Pitch PCB Connector - M20 Series
- Double Row, Surface Mount Tail, 16 (8+8) contacts.
- Gold finish on contact area, Tin finish on termination.
- Packaged in Tape & Reel (pick and place using connector housing).
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
3A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 9T
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
20.57 x 15.40 x 5.00
Height of Connector above PCB:
931 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
