M20-7920442R

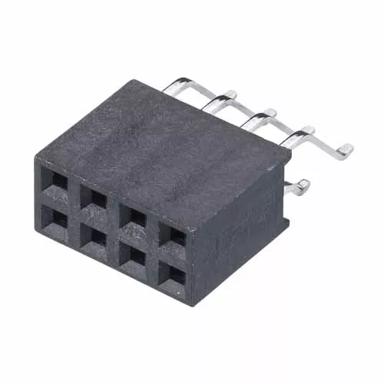

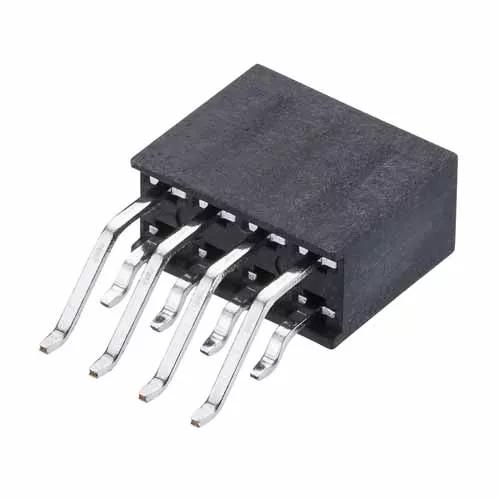

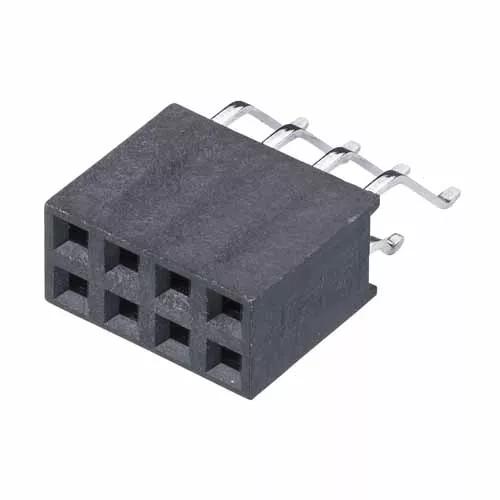

4+4 Pos. Female DIL Horizontal SMT Conn. (T+R)

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Double Row, Surface Mount Tail, 8 (4+4) contacts.
  • Gold finish on contact area, Tin finish on termination.
  • Packaged in Tape & Reel (pick and place using connector housing).

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

8

Entry Style:

Side Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.93g

Overall Dimensions (L x W x D) in mm:

10.41 x 15.40 x 5.00

Height of Connector above PCB:

5.00mm

Availability

Distributor Location Quantity

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
