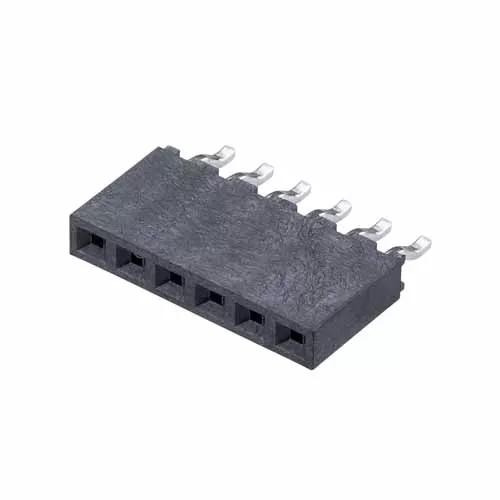

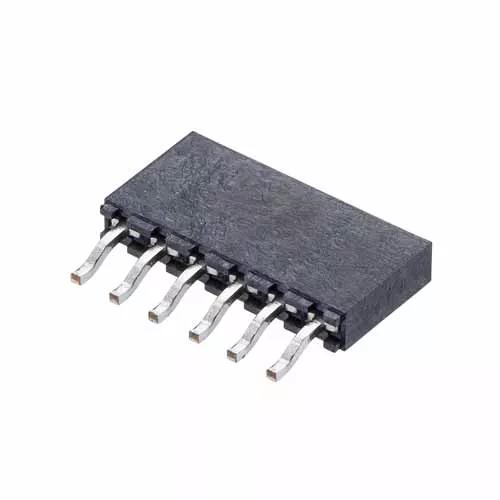

M20-7910642R
6 Pos. Female SIL Horizontal SMT Conn. (T+R)
2.54mm (0.1") Pitch PCB Connector - M20 Series
12,094 in stock Check availability
6 similiar products View products
Samacsys account required
No login is required
Product Description
- Single Row, Surface Mount Tail, 6 contacts.
- Gold finish on contact area, Tin finish on termination.
- Packaged in Tape & Reel (pick and place using connector housing).
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.54mm (0.1")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Horizontal
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.64mm square
Current Rating:
3A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Signal Contacts:
6
Entry Style:
Side Entry
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 9T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.687g
Overall Dimensions (L x W x D) in mm:
15.49 x 11.90 x 2.50
Height of Connector above PCB:
2.50mm
Frequently Asked Questions Ask a Question
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
