Home > M20-7891046
Active Product

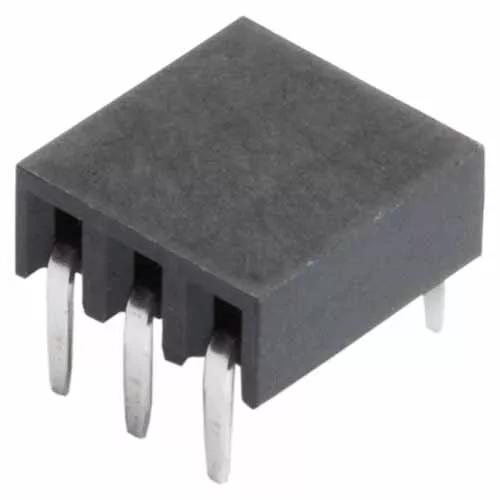

M20-7891046

10 Pos. Female SIL Horizontal Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

Add to Favorites

Loading…   Check availability

5 similar products View products

Traceparts account required

Product Description

  • Single Row, 3mm solder PC Tails – 10 contacts.
  • Tin finish on contact area and termination.
  • 7.87mm between PC tail rows.

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

10

Entry Style:

Side Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.036g

Overall Dimensions (L x W x D) in mm:

25.40 x 8.12 x 6.30

Height of Connector above PCB:

3.30mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
