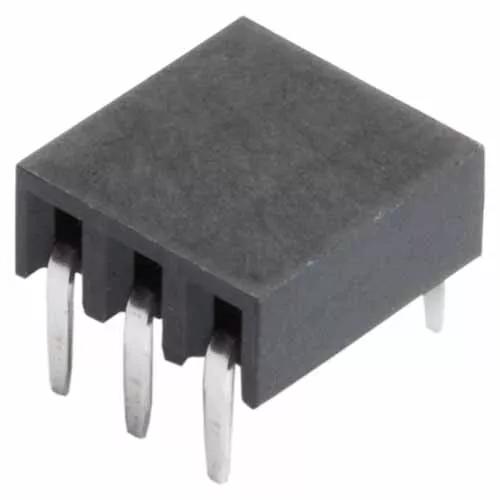

5 Pos. Female SIL Horizontal Throughboard Conn.
2.54mm (0.1") Pitch PCB Connector - M20 Series
- Single Row, 3mm solder PC Tails – 5 contacts.
- Gold finish on contact area, Tin finish on termination.
- 7.87mm between PC tail rows.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
3A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
12.70 x 8.12 x 6.30
Height of Connector above PCB:
Length of Throughboard Tail:
189 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
M20-7890542 CAD Model (ZIP file containing STP and IGES)Download
