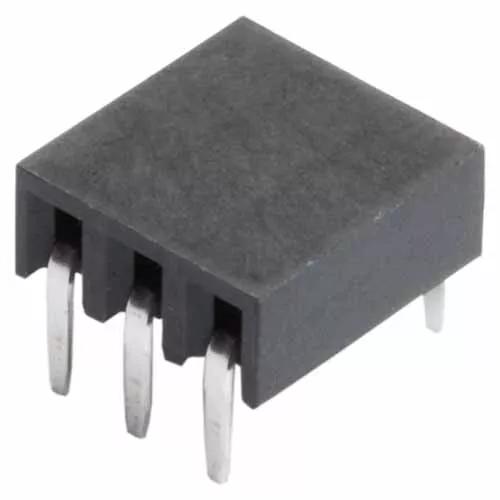

Representative image of product family.

M20-7890246

2 Pos. Female SIL Horizontal Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Single Row, 3mm solder PC Tails - 2 contacts.
  • Tin finish on contact area and termination.
  • 7.87mm between PC tail rows.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 19569 Website
Digi-Key Global 1200 Buy Now
Farnell Europe 749 Buy Now
Mouser Electronics Inc Global 751 Buy Now
Newark USA 57 Buy Now
Harwin Europe 2760

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 2.54mm (0.1") Pitch PCB Connector - M20 Series
Contact Pitch: 2.54mm (0.1")
Contact Gender: Female/Socket/Jack
Connector Orientation: Horizontal
Connection Type: PC Tail / Throughboard
Mating Pin Size: 0.64mm square
Current Rating: 3A
Operating Temperature: -40°C to +105°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: 100% Tin over Nickel
Base Material of Contact: Phosphor Bronze
Housing Material: Polyamide (Nylon) 6T
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.207g
Packaging Style: Tube

Dimensions

+
Number of Rows: 1
Total Number of Contacts: 2
Height of Connector above PCB: 3.3mm
End Stackable: No
Side Stackable: No
Polarising Features: No
Can be cut to another size: No
Length of PC Tail: 3mm
Entry Style: Side Entry
Mating Profiles/Heights

Related Products

+
Product Family: M20-789
