M20-7881046

10+10 Pos. Female DIL Horizontal Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

Order Sample

Add to Favorites

1,321 in stock Check availability

5 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Double Row, 3mm solder PC Tails – 20 contacts (10+10).
Tin finish on contact area and termination.
7.87mm between PC tail rows.

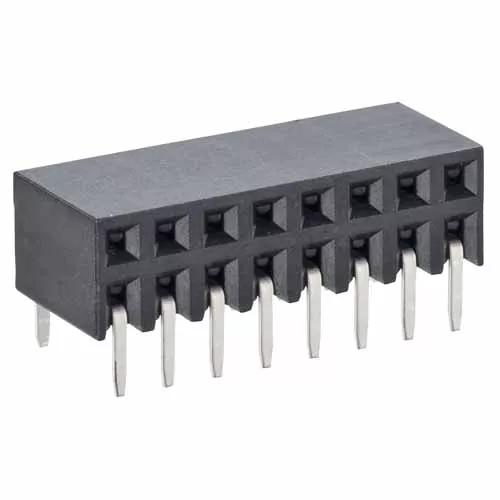

M20-7881046 - 10+10 Pos. Female DIL Horizontal Throughboard Conn.

Representative image of product family

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Side Entry

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

2.163g

Overall Dimensions (L x W x D) in mm:

25.60 x 8.12 x 8.90

Height of Connector above PCB:

5.90mm

Length of Throughboard Tail:

3.00mm
