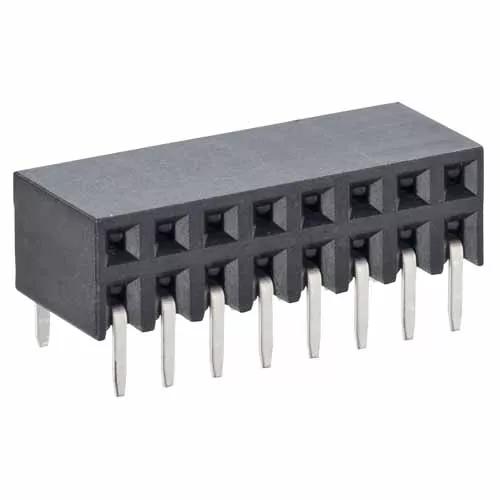

Product Characteristics

• End Stackable:

  No

• Entry Style:

  Side Entry

• Mating Pin Size:

  0.64mm square

• Number of Rows:

  2

• Connector Orientation:

  Horizontal

• Country of Origin:

  CN

• Side Stackable:

  No

• Number of Signal Contacts:

  8

• Operating Temperature:

  -40°C to +105°C

• RoHS Status:

  RoHS Compliant (2015/863/EU) with no Exemption required

• Current Rating:

  3A per contact

• Soldering Data:

  Max Solder Temperature: 260°C for 10 seconds

• Polarised:

  No

• Cuttable:

  No

Materials

• Finish / Plating on Contact Surface:

  100% Tin over Nickel

• Housing Material:

  Polyamide (Nylon) 9T

• Base Material of Contact:

  Phosphor Bronze

• Flammability Rating:

  UL94V-0

• Packaging Style:

  Tube

• Finish / Plating on Termination:

  100% Tin over Nickel

• Housing Colour:

  Black

Dimensions

• Contact Pitch:

  2.54mm (0.1")

• Weight:

  0.865g

• Dimensions:

  10.36 x 8.12 x 8.90

• PC Tail Length:

  3.00mm

• Height of Connector above PCB:

  5.90mm
