  • M20-7871042 - 10+10 Pos. Female DIL Vertical SMT Conn.

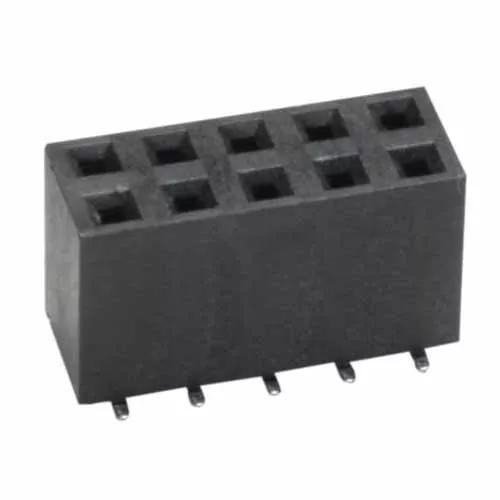

Representative image of product family.

M20-7871042

10+10 Pos. Female DIL Vertical SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Double Row SMT, Dual (Top and Bottom) Entry, 7.5mm connector height - 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination.
  • Supplied in tubes.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 148 Website
Digi-Key Global 585 Buy Now
Farnell Europe 202 Buy Now
Mouser Electronics Inc Global 263 Buy Now
Newark USA 68 Buy Now
Harwin Europe 660

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 2.54mm (0.1") Pitch PCB Connector - M20 Series
Contact Pitch: 2.54mm (0.1")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Mating Pin Size: 0.64mm square
Current Rating: 3A
Operating Temperature: -40°C to +105°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: Polyamide (Nylon) 6T
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.802g
Packaging Style: Tube

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 20
Height of Connector above PCB: 7.5mm
End Stackable: No
Side Stackable: No
Polarising Features: No
Can be cut to another size: No
Entry Style: Dual Entry (Bottom Entry, Top Entry)
Mating Profiles/Heights

Related Products

+
Product Family: M20-787

Mating Products

Previous Next

Alternative products

M20-7871046P - 10+10 Pos. Female DIL Vertical SMT Conn. (P+P)

Closest alternative:

M20-7871046P

10+10 Pos. Female DIL Vertical SMT Conn. (P+P)
