Active Product

M20-7870642

6+6 Pos. Female DIL Vertical SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

Order Sample

Add to Favorites

1,724 in stock Check availability

7 similiar products View products

Traceparts account required

Product Description

Double Row Surface Mount, Dual (Top and Bottom) Entry, 7.5mm connector height – 12 contacts (6+6).
Gold finish on contact area, Tin finish on termination.
Supplied in tubes.

M20-7870642 - 6+6 Pos. Female DIL Vertical SMT Conn.

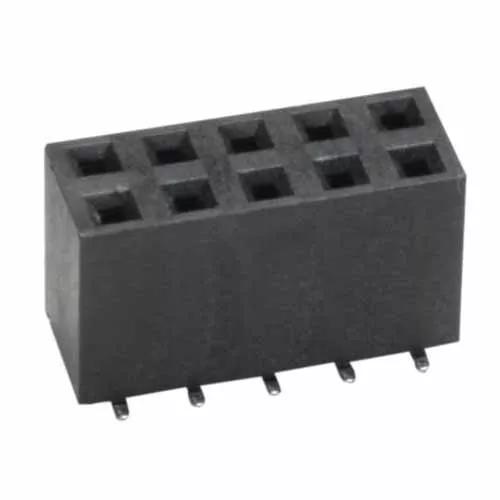

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Dual Entry (Bottom Entry, Top Entry)

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

1.081g

Overall Dimensions (L x W x D) in mm:

15.44 x 6.50 x 7.50

Height of Connector above PCB:

7.50mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
