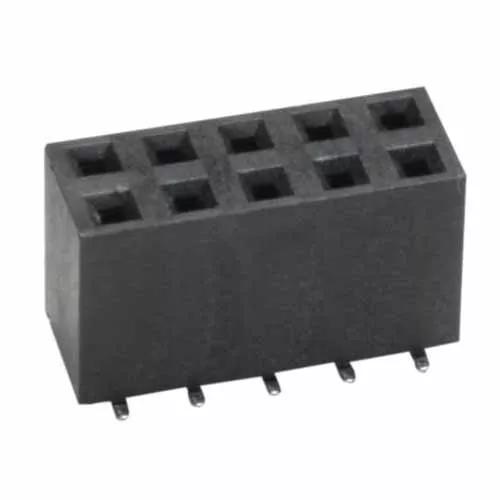

3+3 Pos. Female DIL Vertical SMT Conn.
2.54mm (0.1") Pitch PCB Connector - M20 Series
- Double Row Surface Mount, Dual (Top and Bottom) Entry, 7.5mm connector height – 6 contacts (3+3).
- Gold finish on contact area, Tin finish on termination.
- Supplied in tubes.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
3A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Dual Entry (Bottom Entry, Top Entry)
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
7.82 x 6.50 x 7.50
Height of Connector above PCB:
4,703 in stock
Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
M20-7870342 CAD Model (ZIP file containing STP and IGES)Download
