M20-7861642

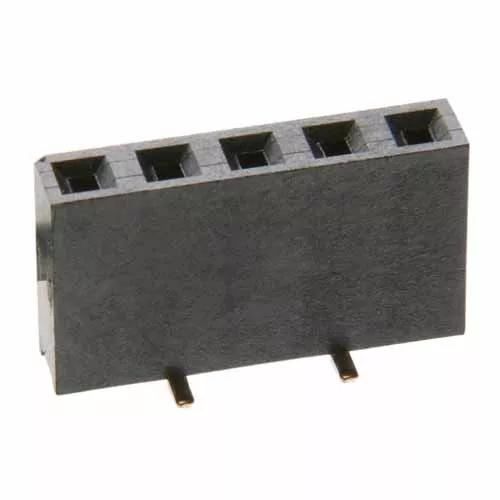

16 Pos. Female SIL Vertical SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Single Row SMT, Dual (Top and Bottom) Entry, 7.5mm connector height – 16 contacts.
  • Gold finish on contact area, Tin finish on termination.
  • Supplied in tubes.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

16

Entry Style:

Dual Entry (Bottom Entry, Top Entry)

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.442g

Overall Dimensions (L x W x D) in mm:

40.84 x 4.00 x 7.50

Height of Connector above PCB:

7.50mm

Availability

Limited availability or made-to-order
Distributor Location Quantity

*Stock available: contact distributor to purchase
