M20-7861546

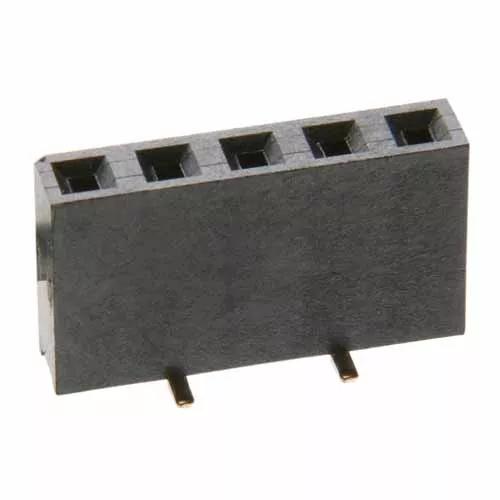

15 Pos. Female SIL Vertical SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Single Row SMT, Dual (Top and Bottom) Entry, 7.5mm connector height – 15 contacts.
  • Tin finish on contact area and termination.
  • Supplied in tubes.

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

15

Entry Style:

Dual Entry (Bottom Entry, Top Entry)

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.364g

Overall Dimensions (L x W x D) in mm:

38.30 x 4.00 x 7.50

Height of Connector above PCB:

7.50mm

Availability

Distributor Location Quantity
Mouser Electronics Inc
Global
Status602

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M20-786.pdf

ZIP

M20-7861546 CAD Model (ZIP file containing STP and IGES)

PDF

C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (24-Jul-2019) including 201 SVHC (16-Jul-2019), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for M20-786 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

OTHER DOWNLOADS

PDF

Catalog page - M20 Female Vertical SMT

PDF

Catalog page - M20 Connectors Specification

PDF

Catalog page - M20 Connectors Mating Profiles
