M20-7860546

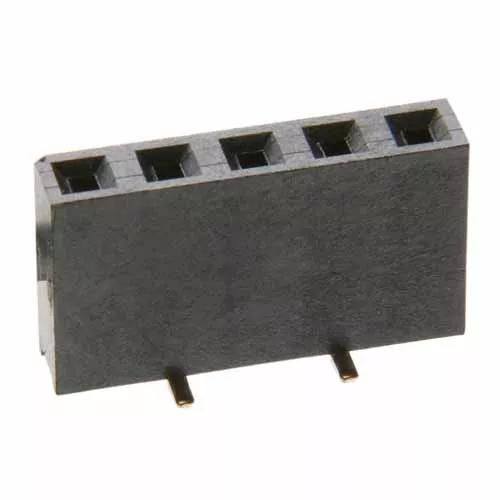

5 Pos. Female SIL Vertical SMT Conn.

BBi

M20-7860546

5 Pos. Female SIL Vertical SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Single Row Surface Mount, Dual (Top and Bottom) Entry, 7.5mm connector height - 5 contacts.

  • Tin finish on contact area and termination.

  • Supplied in tubes.

View Technical Details

Checking stock availability...

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Entry Style:

    Dual Entry (Bottom Entry, Top Entry)

  • Mating Pin Size:

    0.64mm square

  • Number of Rows:

    1

  • Connector Orientation:

    Vertical

  • Country of Origin:

    CN

  • Side Stackable:

    No

  • Number of Signal Contacts:

    5

  • Operating Temperature:

    -40°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    3A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    100% Tin over Nickel

  • Housing Material:

    Polyamide (Nylon) 6T

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.54mm (0.1")

  • Weight:

    0.455g

  • Dimensions:

    12.90 x 4.00 x 7.50

  • Height of Connector above PCB:

    7.50mm

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - M20-786.pdf

  • C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

Product Information

  • Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

  • Product Datasheet - INDESS range: M20 and M22 (BBi)

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for M20-786 series

  • RoHS - M20-7860546
