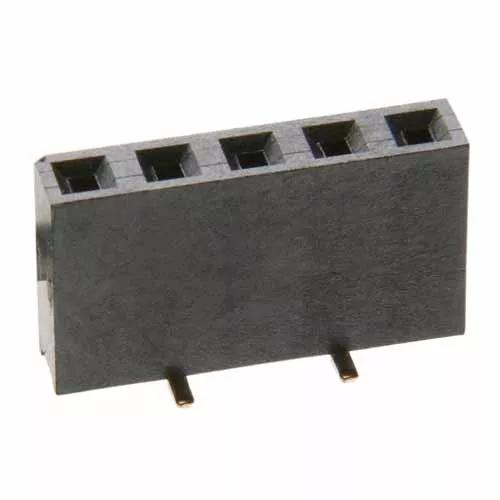

Representative image of product family.

M20-7860346

3 Pos. Female SIL Vertical SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Single Row SMT, Dual (Top and Bottom) Entry, 7.5mm connector height - 3 contacts.
  • Tin finish on contact area and termination.
  • Supplied in tubes.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Avnet Abacus Europe 24820 Buy Now
Mouser Electronics Inc Global 1202 Buy Now

View more stock

Part Number Stock Count View Stock
M20-7860346 26022 View Stock
M20-7860546 910 View Stock
M20-7861546 771 View Stock
M20-7862042 113 View Stock

Product Information

Specification

+
Product Type: 2.54mm (0.1") Pitch PCB Connector - M20 Series
Contact Pitch: 2.54mm (0.1")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Mating Pin Size: 0.64mm square
Current Rating: 3A
Operating Temperature: -40°C to +105°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: 100% Tin over Nickel
Base Material of Contact: Phosphor Bronze
Housing Material: Polyamide (Nylon) 6T
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.273g
Packaging Style: Tube

Dimensions

+
Number of Rows: 1
Total Number of Contacts: 3
Height of Connector above PCB: 7.5mm
End Stackable: No
Side Stackable: No
Polarising Features: No
Can be cut to another size: No
Entry Style: Dual Entry (Bottom Entry, Top Entry)
Mating Profiles/Heights
