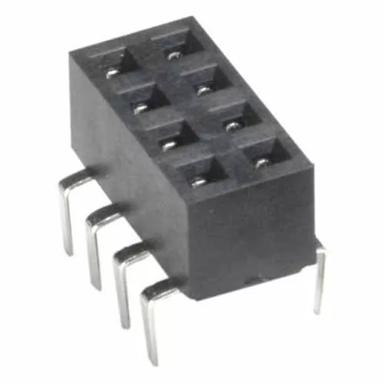

2.54mm (0.1") Pitch DIL Throughboard Dual Entry Socket Assembly, 7.62mm tail spacing, selective gold + tin, 3+3 contacts

BBi

Traceparts account required

M20-7850342

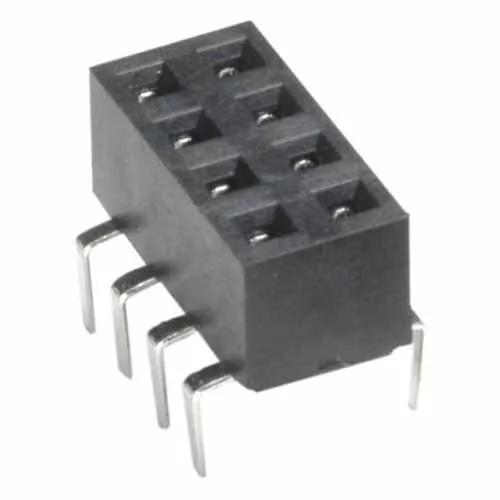

2.54mm (0.1") Pitch DIL Throughboard Dual Entry Socket Assembly, 7.62mm tail spacing, selective gold + tin, 3+3 contacts


2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Double Row, 3mm solder PC Tails - 6 contacts (3+3).

  • Dual (Top and Bottom) Entry, 7.62mm tail spacing.

  • Gold finish on contact area, Tin finish on termination.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Pitch:

    2.54mm (0.1")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    PC Tail / Throughboard

  • Mating Pin Size:

    0.64mm square

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    6

  • Entry Style:

    Dual Entry (Bottom Entry, Top Entry)

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Phosphor Bronze

  • Housing Material:

    Polyamide (Nylon) 6T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Height of Connector above PCB:

    5.00mm

  • PC Tail Length:

    3.00mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    3A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    0.379g

  • Dimensions:

    8.12 x 7.87 x 8.00

  • Operating Temperature:

    -40°C to +105°C

Downloads

    Environmental Compliance

  • M20-7850342

  • Material composition for M20-785 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M20-785.pdf

  • C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Datasheet - INDESS range: M20 and M22 (BBi)

  • Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
