M20-7831042

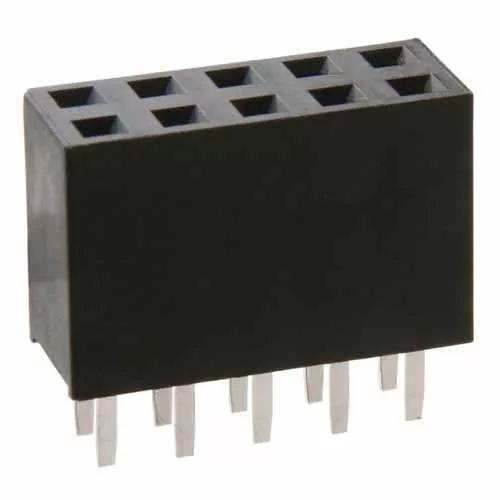

10+10 Pos. Female DIL Vertical Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Double Row, 3mm solder PC Tails – 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination.
  • 8.5mm connector height.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.8g

Overall Dimensions (L x W x D) in mm:

25.80 x 5.04 x 11.50

Height of Connector above PCB:

8.50mm

Length of Throughboard Tail:

3.00mm

Availability

Popular product
