Home > M20-7830942
Active Product

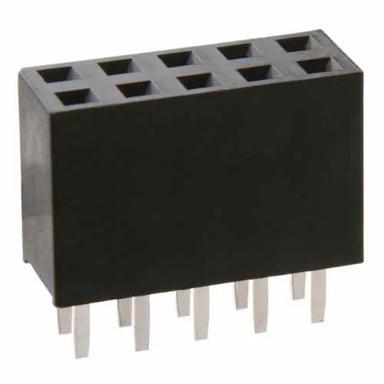

M20-7830942

9+9 Pos. Female DIL Vertical Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

Add to Favorites

Loading…   Check availability

4 similar products View products

Traceparts account required

Product Description

  • Double Row, 3mm solder PC Tails – 18 contacts (9+9).
  • Gold finish on contact area, Tin finish on termination.
  • 8.5mm connector height.

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

18

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.62g

Overall Dimensions (L x W x D) in mm:

23.26 x 5.04 x 11.50

Height of Connector above PCB:

8.50mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

Can you tell me if this product is compatible with Paste-In-Hole, also called Through-Hole Reflow or Pin-In-Paste processes?

We have not specifically tested this product with a pin-in-paste soldering method. In theory, the materials are compatible with this process – the plastic is similar to ones we use on SMT products, so will withstand the full heat exposure from a reflow oven process. However, you will need to consider that the underside of the connector is open, and there may be a risk of the liquid solder wicking up into the inside of the connector. You would need to test the process and see if it was compatible, or if you need to apply an additional solder mask tape or similar to the rear of the connector.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS

How can we help you?

If you would like to talk to someone about Harwin’s product, technical knowledge or documentation, contact one of our Experts for assistance.
