M20-7830546

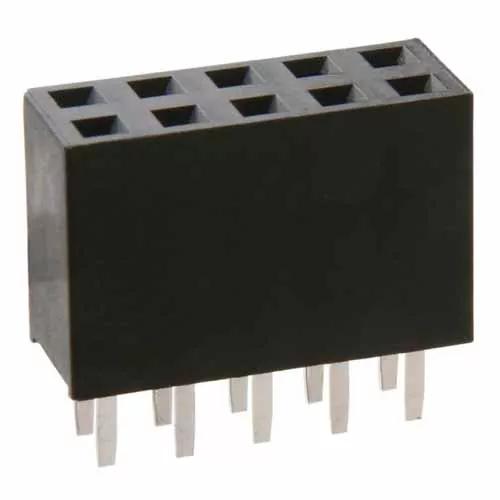

5+5 Pos. Female DIL Vertical Throughboard Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Double Row, 3mm solder PC Tails – 10 contacts (5+5).
  • Tin finish on contact area and termination.
  • 8.5mm connector height.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.909g

Overall Dimensions (L x W x D) in mm:

13.10 x 5.04 x 11.50

Height of Connector above PCB:

8.50mm

Length of Throughboard Tail:

3.00mm

Availability

10,083 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 2244
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1968
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1813
Distributor Newark
Location USA
Quantity (Updated Daily) 1236
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 1100
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 615
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 396
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 396
Distributor Genalog
Location Europe
Quantity (Updated Daily) 162
Distributor Anglia
Location Europe
Quantity (Updated Daily) 153
