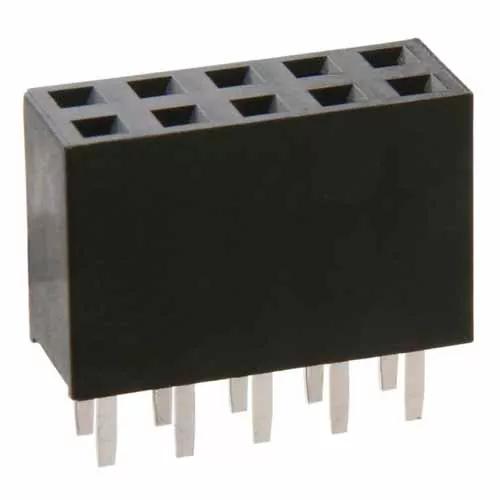

M20-7830246
2+2 Pos. Female DIL Vertical Throughboard Conn.
2.54mm (0.1") Pitch PCB Connector - M20 Series
- Double Row, 3mm solder PC Tails – 4 contacts (2+2).
- Tin finish on contact area and termination.
- 8.5mm connector height.
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.54mm (0.1")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
0.64mm square
Current Rating:
3A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
4
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 9T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
0.364g
Overall Dimensions (L x W x D) in mm:
5.48 x 5.04 x 11.50
Height of Connector above PCB:
8.50mm
Length of Throughboard Tail:
3.00mm
Availability
9,638 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
Can you tell me if this product is compatible with Paste-In-Hole, also called Through-Hole Reflow or Pin-In-Paste processes?
We have not specifically tested this product with a pin-in-paste soldering method. In theory, the materials are compatible with this process – the plastic is similar to ones we use on SMT products, so will withstand the full heat exposure from a reflow oven process. However, you will need to consider that the underside of the connector is open, and there may be a risk of the liquid solder wicking up into the inside of the connector. You would need to test the process and see if it was compatible, or if you need to apply an additional solder mask tape or similar to the rear of the connector.
