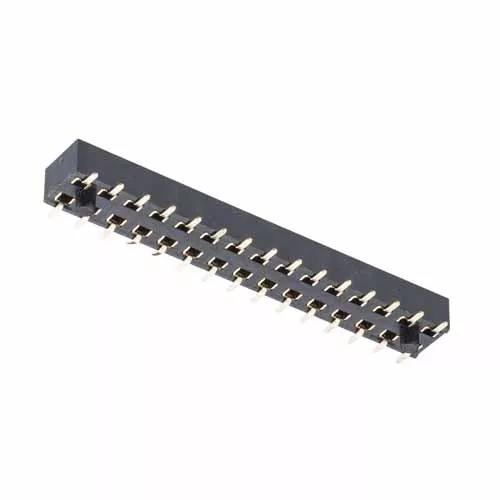

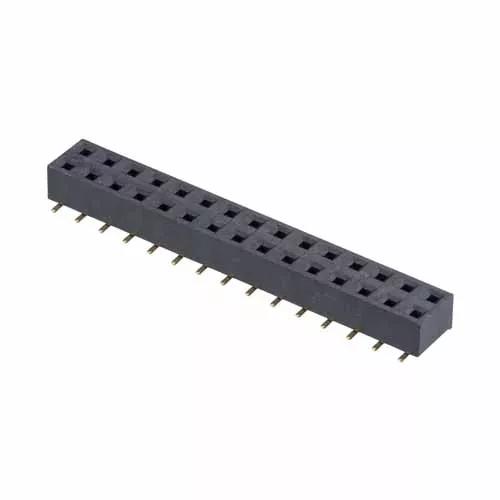

15+15 Pos. Female DIL Vertical SMT Conn.
2.54mm (0.1") Pitch PCB Connector - M20 Series
- Double Row Surface Mount with location pegs, Dual (Top and Bottom) Entry, 3.75mm connector height – 30 contacts (15+15).
- Gold finish on contact area and termination.
- Supplied in tubes.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
3A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Dual Entry (Bottom Entry, Top Entry)
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 9T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
38.10 x 7.20 x 4.95
Height of Connector above PCB:
975 in stock
