M20-7810945R

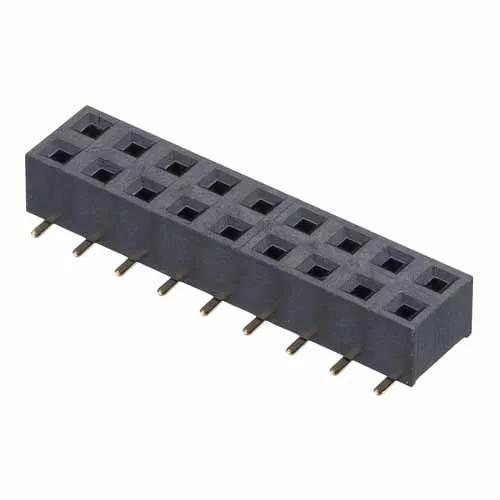

9+9 Pos. Female DIL Vertical SMT Conn. (T+R)
2.54mm (0.1") Pitch PCB Connector - M20 Series
Made to order
5 similiar products View products
Samacsys account required
No login is required
Product Description

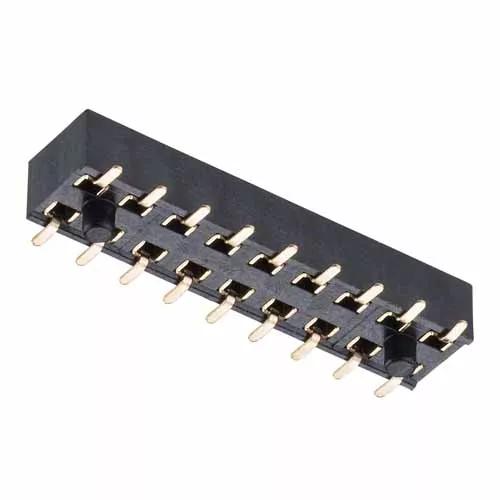

- Double Row Surface Mount with location pegs, Dual (Top and Bottom) Entry, 3.75mm connector height – 18 contacts (9+9).
- Gold finish on contact area and termination.
- Supplied on Tape and Reel with pick and place cap.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.54mm (0.1")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.64mm square
Current Rating:
3A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
18
Entry Style:
Dual Entry (Bottom Entry, Top Entry)
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 9T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.838g
Overall Dimensions (L x W x D) in mm:
22.86 x 7.20 x 4.95
Height of Connector above PCB:
3.75mm
