Active Product

M20-7810945

9+9 Pos. Female DIL Vertical SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

Order Sample

Add to Favorites

In stock Check availability

5 similar products View products

Traceparts account required

Product Description

Double Row Surface Mount with location pegs, Dual (Top and Bottom) Entry, 3.75mm connector height – 18 contacts (9+9).
Gold finish on contact area and termination.
Supplied in tubes.

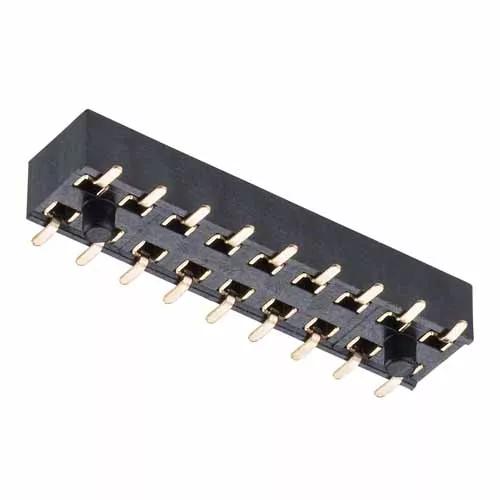

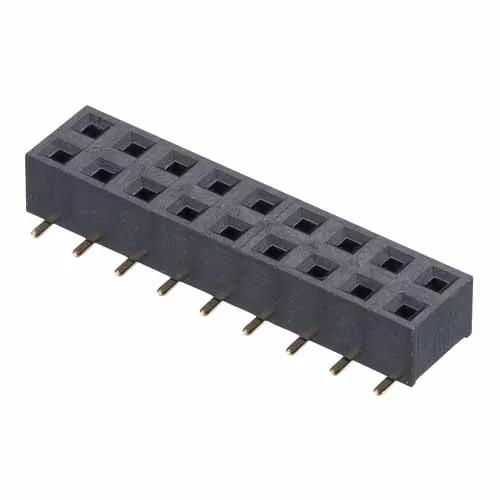

M20-7810945 - 9+9 Pos. Female DIL Vertical SMT Conn.

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Dual Entry (Bottom Entry, Top Entry)

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.729g

Overall Dimensions (L x W x D) in mm:

22.86 x 7.20 x 4.95

Height of Connector above PCB:

3.75mm
