M20-7810545

5+5 Pos. Female DIL Vertical SMT Conn.

2.54mm (0.1") Pitch PCB Connector - M20 Series

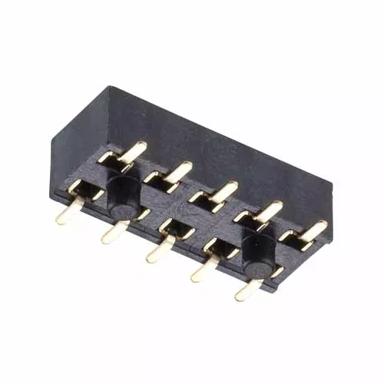

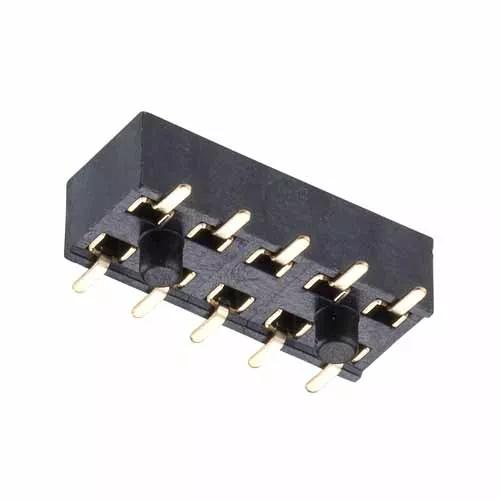

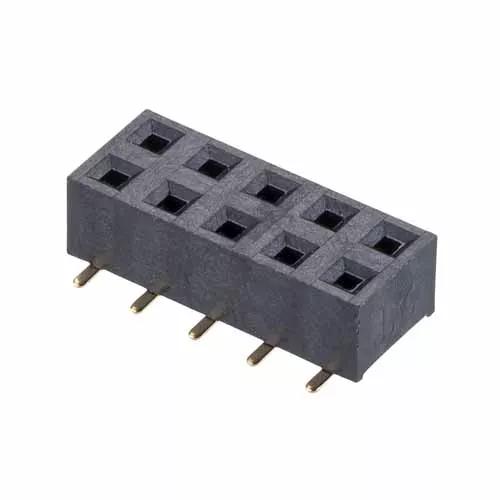

  • Double Row Surface Mount with location pegs, Dual (Top and Bottom) Entry, 3.75mm connector height – 10 contacts (5+5).
  • Gold finish on contact area and termination.
  • Supplied in tubes.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Entry Style:

Dual Entry (Bottom Entry, Top Entry)

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.41g

Overall Dimensions (L x W x D) in mm:

12.70 x 7.20 x 4.95

Height of Connector above PCB:

3.75mm

Availability

1,362 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 470
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 341
Distributor Farnell
Location Europe
Quantity (Updated Daily) 199

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 352
