M20-6163205

M20-6163205

32+32 Pos. Female DIL Vertical Throughboard Conn. Press-fit

BBi

Traceparts account required

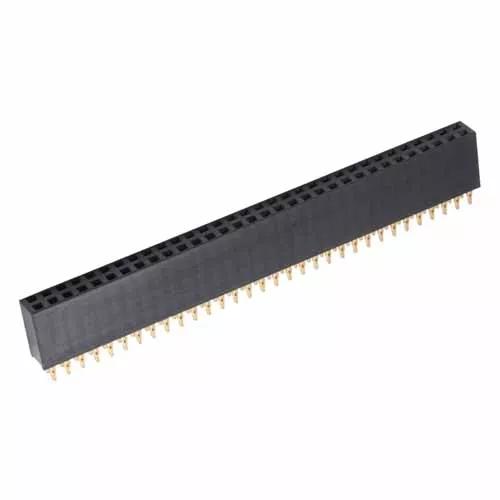

M20-6163205

32+32 Pos. Female DIL Vertical Throughboard Conn. Press-fit

2.54mm (0.1") Pitch PC/104 Connector

  • 2.54mm (0.1") Pitch Double Row, with press-fit tails - Gold finish, 64 contacts (32+32).

  • 3.4mm PC Tails.

  • Non-stackthrough tails, to finish at the bottom of a vertical bus stack.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Entry Style:

    Top Entry

  • Mating Pin Size:

    0.64mm square

  • Number of Rows:

    2

  • Connector Orientation:

    Vertical

  • Country of Origin:

    TW

  • Side Stackable:

    Yes

  • Number of Signal Contacts:

    64

  • Operating Temperature:

    -55°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    1A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PPS

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.54mm (0.1")

  • Weight:

    9.728g

  • Dimensions:

    82.30 x 4.90 x 14.50

  • PC Tail Length:

    3.40mm

  • Height of Connector above PCB:

    11.10mm

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - M20-616.pdf

  • C039XX Component Specification - PC/104 and PC/104 Plus Connectors

  • Outgassing data for Harwin products (plastics)

    • Product Information

  • Product Training Module - Overview of the PC/104 (2.54mm pitch) and PC/104 Plus (2mm pitch) connectors

  • Product Datasheet - INDESS range: M20 and M22 (BBi)

    • Test Reports

  • Test Report HT029 - PC-104 and PC-104 Plus Environmental (Vibration)

    • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Material composition for M20-616 series

  • RoHS - M20-6163205
