M20-6153205

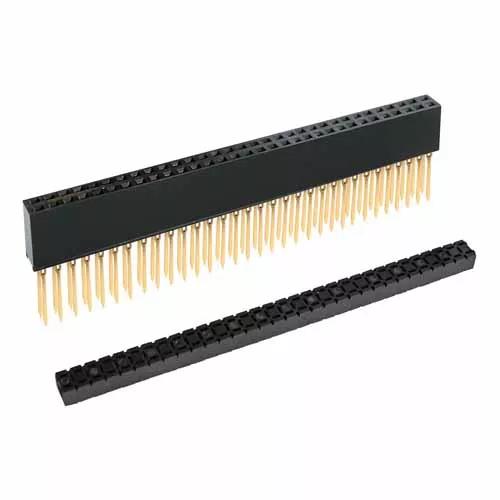

32+32 Pos. Female DIL Vertical Stackthrough Conn. Press-fit

2.54mm (0.1") Pitch PC/104 Connector

  • 2.54mm (0.1″) Pitch Double Row, with press-fit tails – Gold finish, 64 contacts (32+32).
  • 12.1mm stackthrough tails.
  • Tails will mate with another PC/104 connector on the underside of the PCB.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Press-Fit PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

1A max per contact

Operating Temperature:

-55°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

64

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

14.275g

Overall Dimensions (L x W x D) in mm:

82.30 x 4.90 x 23.20

Height of Connector above PCB:

11.10mm

Length of Throughboard Tail:

12.10mm
