M20-6112045

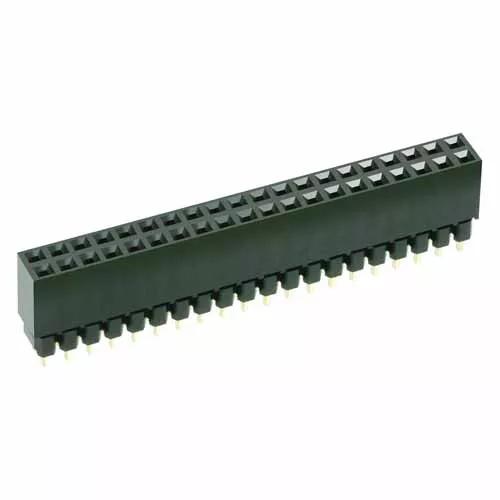

20+20 Pos. Female DIL Vertical Throughboard Conn.

2.54mm (0.1") Pitch PC/104 Connector

  • 2.54mm (0.1″) Pitch Double Row, with solder tails – Gold finish, 40 contacts (20+20).
  • 2.3mm PC Tails.
  • Non-stackthrough tails, to finish at the bottom of a vertical bus stack.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.64mm square

Current Rating:

3A max per contact

Operating Temperature:

-55°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

40

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

4.894g

Overall Dimensions (L x W x D) in mm:

51.46 x 5.00 x 13.34

Height of Connector above PCB:

11.05mm

Length of Throughboard Tail:

2.29mm

Availability

3,354 in stock
