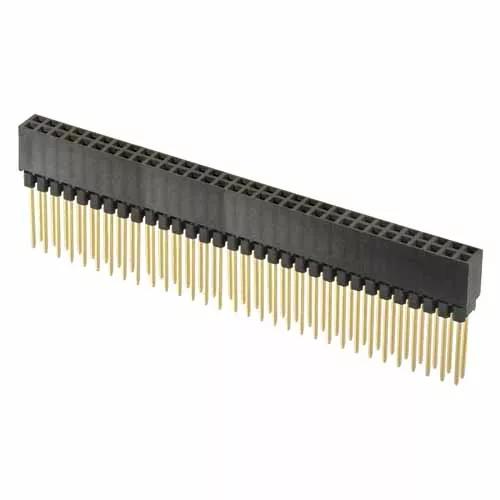

2.54mm (0.1") Pitch Double Row, with solder tails - Gold finish, 64 contacts (32+32).
12.2mm stackthrough tails.
Tails will mate with another PC/104 connector on the underside of the PCB.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Entry Style
Top Entry
Mating Pin Size
0.64mm square
Number of Rows
2
Connector Orientation
Vertical
Country of Origin
CN
Side Stackable
Yes
Number of Signal Contacts
64
Operating Temperature
-55°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
3A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 6T
Base Material of Contact
Phosphor Bronze
Flammability Rating
UL94V-0
Packaging Style
Tube
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
2.54mm (0.1")
Weight
9.898g
Dimensions
81.94 x 5.00 x 23.24
PC Tail Length
12.19mm
Height of Connector above PCB
11.05mm
