M20-6102045

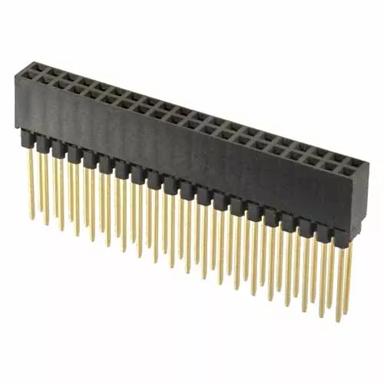

PC/104 Stackthrough Connector, 2.54mm (0.1") Pitch DIL, gold (hi-temp mould), 20+20 contacts

2.54mm (0.1") Pitch PC/104 Connector

  • 2.54mm (0.1") Pitch Double Row, with solder tails - Gold finish, 40 contacts (20+20).

  • 12.2mm stackthrough tails.

  • Tails will mate with another PC/104 connector on the underside of the PCB.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Entry Style:

    Top Entry

  • Mating Pin Size:

    0.64mm square

  • Number of Rows:

    2

  • Connector Orientation:

    Vertical

  • Country of Origin:

    TW

  • Side Stackable:

    Yes

  • Number of Signal Contacts:

    40

  • Operating Temperature:

    -55°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    3A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    Polyamide (Nylon) 6T

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.54mm (0.1")

  • Weight:

    6.186g

  • Dimensions:

    51.46 x 5.00 x 23.24

  • PC Tail Length:

    12.19mm

  • Height of Connector above PCB:

    11.05mm

Downloads

    Product Information

  • Product Training Module - Overview of the PC/104 (2.54mm pitch) and PC/104 Plus (2mm pitch) connectors

  • Product Datasheet - INDESS range: M20 and M22 (BBi)

    • Technical Documentation

  • Technical Drawing / Datasheet - M20-610.pdf

  • C039XX Component Specification - PC/104 and PC/104 Plus Connectors

  • Outgassing data for Harwin products (plastics)

    • Environmental Compliance

  • RoHS - M20-6102045

  • Material composition for M20-610 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

    • Test Reports

  • Test Report HT029 - PC-104 and PC-104 Plus Environmental (Vibration)
