M20-1180046

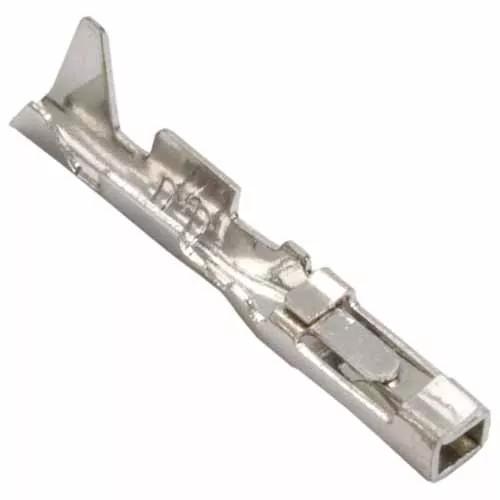

Female 22-30AWG Crimp Contact, loose

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Loose female crimp contacts – Tin finish contact area.
  • Suitable for cable conductor sizes from 22 to 30AWG.
  • Use with crimp housings M20-106 and M20-107 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22-30AWG

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.085g

Overall Dimensions (L x W x D) in mm:

11.70 x 2.30 x 2.60

Availability

74,094 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 29878
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 17500
Distributor Genalog
Location Europe
Quantity (Updated Daily) 12997
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 6300
Distributor Newark
Location USA
Quantity (Updated Daily) 3491
Distributor Anglia
Location Europe
Quantity (Updated Daily) 2698
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 930
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 300

Questions & Answers Ask a Question

What is the reel fed version of the M20-1180046 terminal, and is there an applicator?

The reeled version of this contact is the M20-1160046. We do not sell applicatiors ourselves for these contacts – we would recommend that you find a local crimp machine supplier near you. Generally you only need to supply them with a sample of the contacts in the reeled version and some f the wire you intend to crimp, and they will manufacture the crimp applicator jaws to suit. If you need any further assistance, please contact one of our Experts.

Once I crimp these contacts onto wire, what is the correct orientation in the housing?

The correct orientation for the crimp is with the crimped side facing towards the windows in the housing. The flat back of the crimp is against the side without the windows. If you need any further assistance, do please contact our Experts with further details of your problem.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

INSTRUCTION SHEETS
