M20-1180042

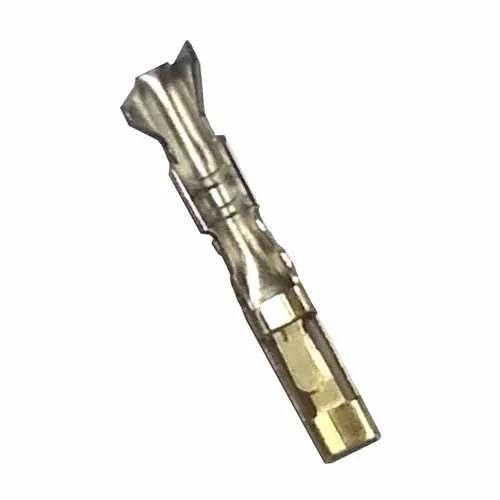

Female 22-30AWG Crimp Contact, loose

2.54mm (0.1") Pitch PCB Connector - M20 Series

  • Loose female crimp contacts – Gold finish contact area.
  • Suitable for cable conductor sizes from 22 to 30AWG.
  • Use with crimp housings M20-106 and M20-107 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22-30AWG

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.084g

Overall Dimensions (L x W x D) in mm:

11.70 x 2.30 x 2.60

Availability

45,340 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 24559
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 10200
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 8267
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 1308
Distributor Farnell
Location Europe
Quantity (Updated Daily) 925
Distributor Genalog
Location Europe
Quantity (Updated Daily) 45
Distributor Newark
Location USA
Quantity (Updated Daily) 21
Distributor Anglia
Location Europe
Quantity (Updated Daily) 15

Questions & Answers Ask a Question

Once I crimp these contacts onto wire, what is the correct orientation in the housing?

The correct orientation for the crimp is with the crimped side facing towards the windows in the housing. The flat back of the crimp is against the side without the windows. If you need any further assistance, do please contact our Experts with further details of your problem.
