2.54mm (0.1") Pitch PCB Connector - M20 Series

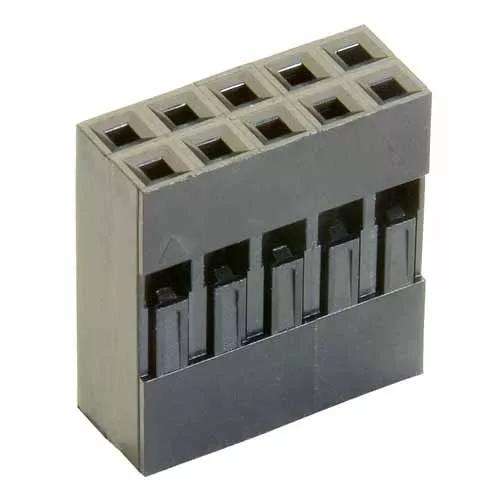

Double Row female crimp housing - 22 contact (11+11).
Use with crimp contacts M20-1160042, M20-1160046, M20-1180042 or M20-1180046.
Insert crimped contacts into the rear of the housing.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Mating Pin Size:
0.64mm square
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
TW
Side Stackable:
Yes
Number of Signal Contacts:
22
Operating Temperature:
-25°C to +85°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
3A per contact
Polarised:
No
Cuttable:
No
Materials
Housing Material:
PPE+PS
Flammability Rating:
UL94V-1
Packaging Style:
Bulk/Loose
Housing Colour:
Black
Dimensions
Contact Pitch:
2.54mm (0.1")
Weight:
1.1g
Dimensions:
27.94 x 5.10 x 14.00
Downloads
Technical Drawing / Datasheet - M20-107.pdf
C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)
Outgassing data for Harwin products (plastics)
Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Datasheet - INDESS range: M20 and M22 (BBi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M20-107 series
RoHS - M20-1071100
