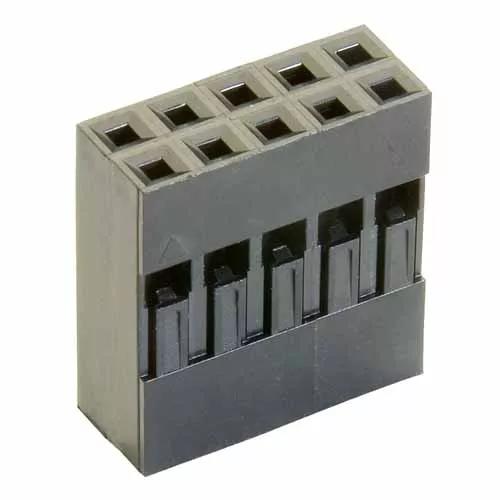

9+9 Pos. Female DIL Cable Housing
2.54mm (0.1") Pitch PCB Connector - M20 Series
EU RoHS Status:
Mating Pin Size:
3A per contact
-25°C to +85°C
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
22.86 x 5.10 x 14.00
2,630 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
Once I crimp these contacts onto wire, what is the correct orientation in the housing?
The correct orientation for the crimp is with the crimped side facing towards the windows in the housing. The flat back of the crimp is against the side without the windows. If you need any further assistance, do please contact our Experts with further details of your problem.
