M20-1070800

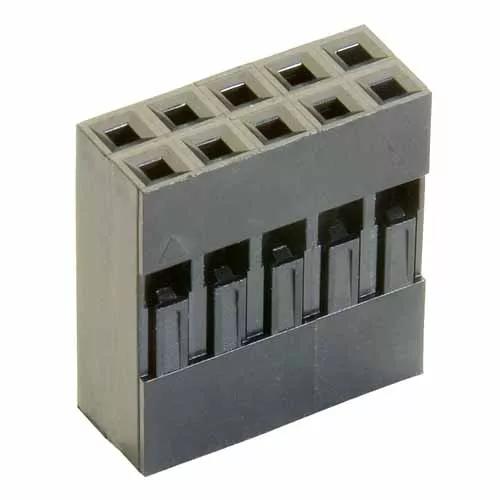

8+8 Pos. Female DIL Cable Housing

2.54mm (0.1") Pitch PCB Connector - M20 Series

Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Housing

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Housing Material:

PPE+PS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-1

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.8g

Overall Dimensions (L x W x D) in mm:

20.32 x 5.10 x 14.00

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status1155
Farnell
Europe
Status835
Harwin
Global
Status2000
Mouser Electronics Inc
Global
Status1968
Newark
USA
Status795
TTI Inc
USA
Status975

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M20-107.pdf

ZIP

M20-1070800 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M20-107 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin
