M20-1070400

M20-1070400

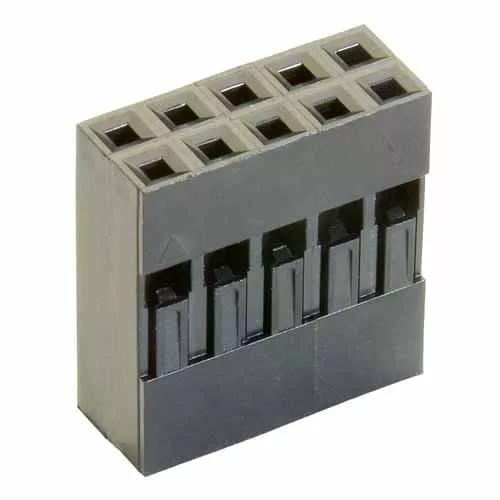

2.54mm (0.1") Pitch DIL Female Crimp Housing, 4+4 contacts

BBi

Traceparts account required

M20-1070400

2.54mm (0.1") Pitch DIL Female Crimp Housing, 4+4 contacts


2.54mm (0.1") Pitch PCB Connector - M20 Series


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Pitch:

    2.54mm (0.1")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Crimp)

  • Mating Pin Size:

    0.64mm square

  • End Stackable:

    No

  • Side Stackable:

    Yes

  • Number of Rows:

    2

  • Number of Signal Contacts:

    8

  • Housing Material:

    PPE+PS

  • Flammability Rating:

    UL94V-1

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Cable (Crimp)

  • Current Rating:

    3A per contact

  • Weight:

    0.4g

  • Dimensions:

    10.16 x 5.10 x 14.00

  • Operating Temperature:

    -25°C to +85°C

Downloads

    Environmental Compliance

  • M20-1070400

  • Material composition for M20-107 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M20-107.pdf

  • C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Datasheet - INDESS range: M20 and M22 (BBi)

  • Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin
