Active Product

M20-1070300

3+3 Pos. Female DIL Cable Housing

2.54mm (0.1") Pitch PCB Connector - M20 Series

Order Sample

Add to Favorites

In stock Check availability

2 similar products View products

Traceparts account required

Product Description

Double Row female crimp housing – 6 contact (3+3).
Use with crimp contacts M20-1160042, M20-1160046, M20-1180042 or M20-1180046.
Insert crimped contacts into the rear of the housing.

M20-1070300 - 3+3 Pos. Female DIL Cable Housing

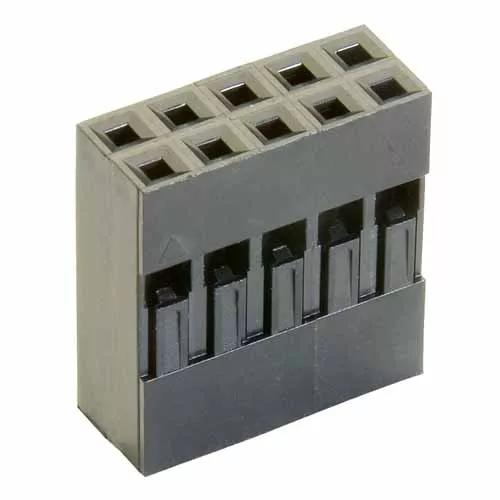

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

End Stackable:

Side Stackable:

Yes

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

PPE+PS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-1

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.3g

Overall Dimensions (L x W x D) in mm:

7.62 x 5.10 x 14.00

Frequently Asked Questions Ask a Question

The correct orientation for the crimp is with the crimped side facing towards the windows in the housing. The flat back of the crimp is against the side without the windows. If you need any further assistance, do please contact our Experts with further details of your problem.
