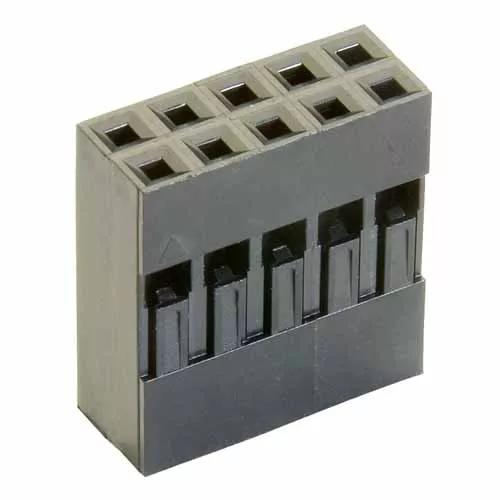

M20-1070200

2+2 Pos. Female DIL Cable Housing

2.54mm (0.1") Pitch PCB Connector - M20 Series

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Housing

Mating Pin Size:

0.64mm square

Current Rating:

3A

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

4

Materials

Housing Material:

PPE+PS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-1

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.2g

Overall Dimensions (L x W x D) in mm:

5.08 x 5.10 x 14.00
