M20-1061200

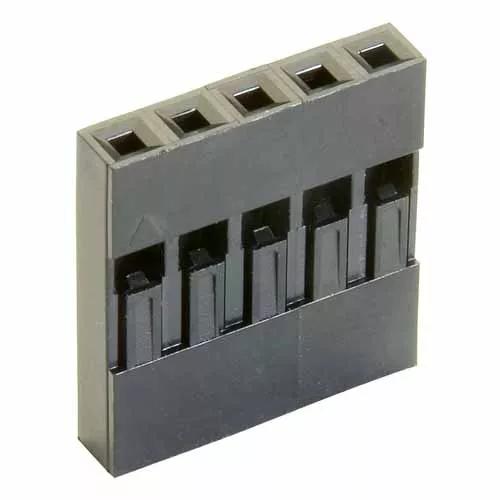

12 Pos. Female SIL Cable Housing

2.54mm (0.1") Pitch PCB Connector - M20 Series

Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

12

Materials

Housing Material:

PPE+PS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-1

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.6g

Overall Dimensions (L x W x D) in mm:

30.68 x 2.50 x 14.00

Availability

6,143 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1899
Distributor Anglia
Location Europe
Quantity (Updated Daily) 1500
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1077
Distributor Farnell
Location Europe
Quantity (Updated Daily) 620
Distributor Genalog
Location Europe
Quantity (Updated Daily) 527
Distributor Newark
Location USA
Quantity (Updated Daily) 520

Questions & Answers Ask a Question

Once I crimp these contacts onto wire, what is the correct orientation in the housing?

The correct orientation for the crimp is with the crimped side facing towards the windows in the housing. The flat back of the crimp is against the side without the windows. If you need any further assistance, do please contact our Experts with further details of your problem.
