M20-1060600

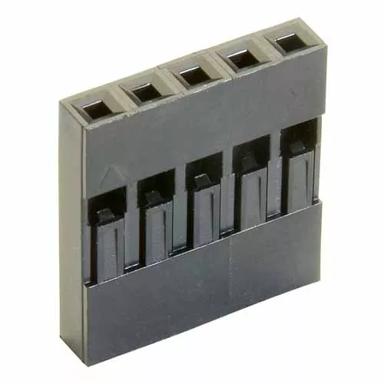

6 Pos. Female SIL Cable Housing

2.54mm (0.1") Pitch PCB Connector - M20 Series

Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

6

Materials

Housing Material:

PPE+PS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-1

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.3g

Overall Dimensions (L x W x D) in mm:

15.44 x 2.50 x 14.00

Availability

10,820 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 3940
Distributor Anglia
Location Europe
Quantity (Updated Daily) 2430
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 2203
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1124
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1077
Distributor Genalog
Location Europe
Quantity (Updated Daily) 46

Questions & Answers Ask a Question

Once I crimp these contacts onto wire, what is the correct orientation in the housing?

The correct orientation for the crimp is with the crimped side facing towards the windows in the housing. The flat back of the crimp is against the side without the windows. If you need any further assistance, do please contact our Experts with further details of your problem.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M20-106.pdf

ZIP

M20-1060600 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M20-106 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

OTHER DOWNLOADS

PDF

Outgassing data for Harwin products (plastics)
