Home > M20-1060500
Active Product

M20-1060500

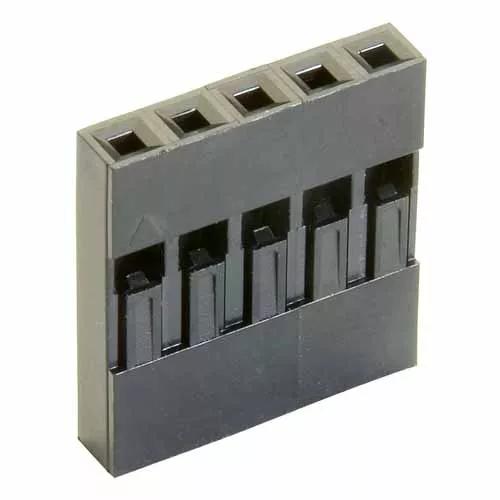

5 Pos. Female SIL Cable Housing

2.54mm (0.1") Pitch PCB Connector - M20 Series

Add to Favorites

28,292 in stock   Check availability

1 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

0.64mm square

Current Rating:

3A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

5

Materials

Housing Material:

PPE+PS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-1

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.25g

Overall Dimensions (L x W x D) in mm:

12.90 x 2.50 x 14.00

Frequently Asked Questions Ask a Question

Once I crimp these contacts onto wire, what is the correct orientation in the housing?

The correct orientation for the crimp is with the crimped side facing towards the windows in the housing. The flat back of the crimp is against the side without the windows. If you need any further assistance, do please contact our Experts with further details of your problem.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
