M20-1060200

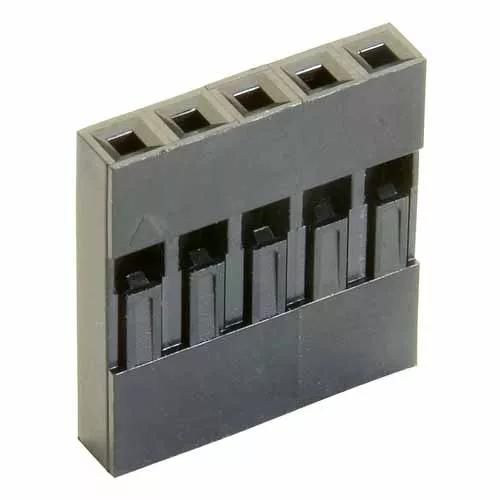

2 Pos. Female SIL Cable Housing
2.54mm (0.1") Pitch PCB Connector - M20 Series
96,536 in stock Check availability
1 similiar products View products
Samacsys account required
No login is required
Product Description
- Single Row female crimp housing – 2 contact.
- Use with crimp contacts M20-1160042, M20-1160046, M20-1180042 or M20-1180046.
- Insert crimped contacts into the rear of the housing.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.54mm (0.1")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Mating Pin Size:
0.64mm square
Current Rating:
3A per contact
Operating Temperature:
-25°C to +85°C
Polarising Features:
No
End Stackable:
No
Side Stackable:
Yes
Can be cut to another size:
No
Number of Rows:
1
Number of Signal Contacts:
2
Materials
Housing Material:
PPE+PS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-1
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.1g
Overall Dimensions (L x W x D) in mm:
5.28 x 2.50 x 14.00
Frequently Asked Questions Ask a Question
Once I crimp these contacts onto wire, what is the correct orientation in the housing?
The correct orientation for the crimp is with the crimped side facing towards the windows in the housing. The flat back of the crimp is against the side without the windows. If you need any further assistance, do please contact our Experts with further details of your problem.
