M20-003

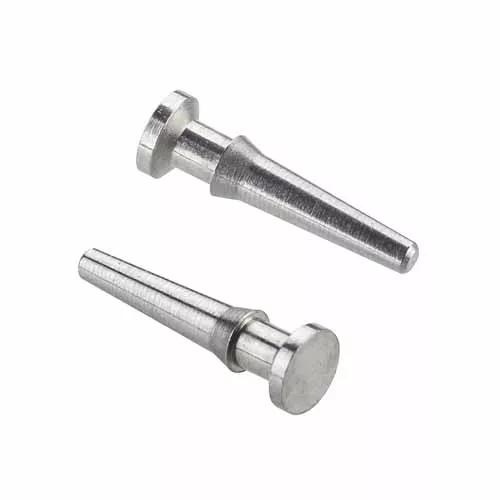

Blanking Pin, Polarizing Pin for female connectors

2.54mm (0.1") Pitch PCB Connector - M20 Series

Polarizing Key, for 2.54mm (0.1″) pitch female cable connectors.
Suitable for use in all products in the M20-106 and M20-107 product families.
Remove the equivalent pin from the mating connector.

Request Samples

Availability

M20-003 - Blanking Pin, Polarizing Pin for female connectors

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.54mm (0.1")

Operating Temperature:

-40°C to +105°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Finish / Plating on Termination:

Nickel

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Strips

Individual Part Weight:

0.029g

Overall Dimensions (L x W x D) in mm:

5.00 x Ø1.55

Availability

67,651 in stock

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - M20-003.pdf

ZIP

M20-003 CAD Model (ZIP file containing STP)

Download

PDF

C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M20-003 series

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin
