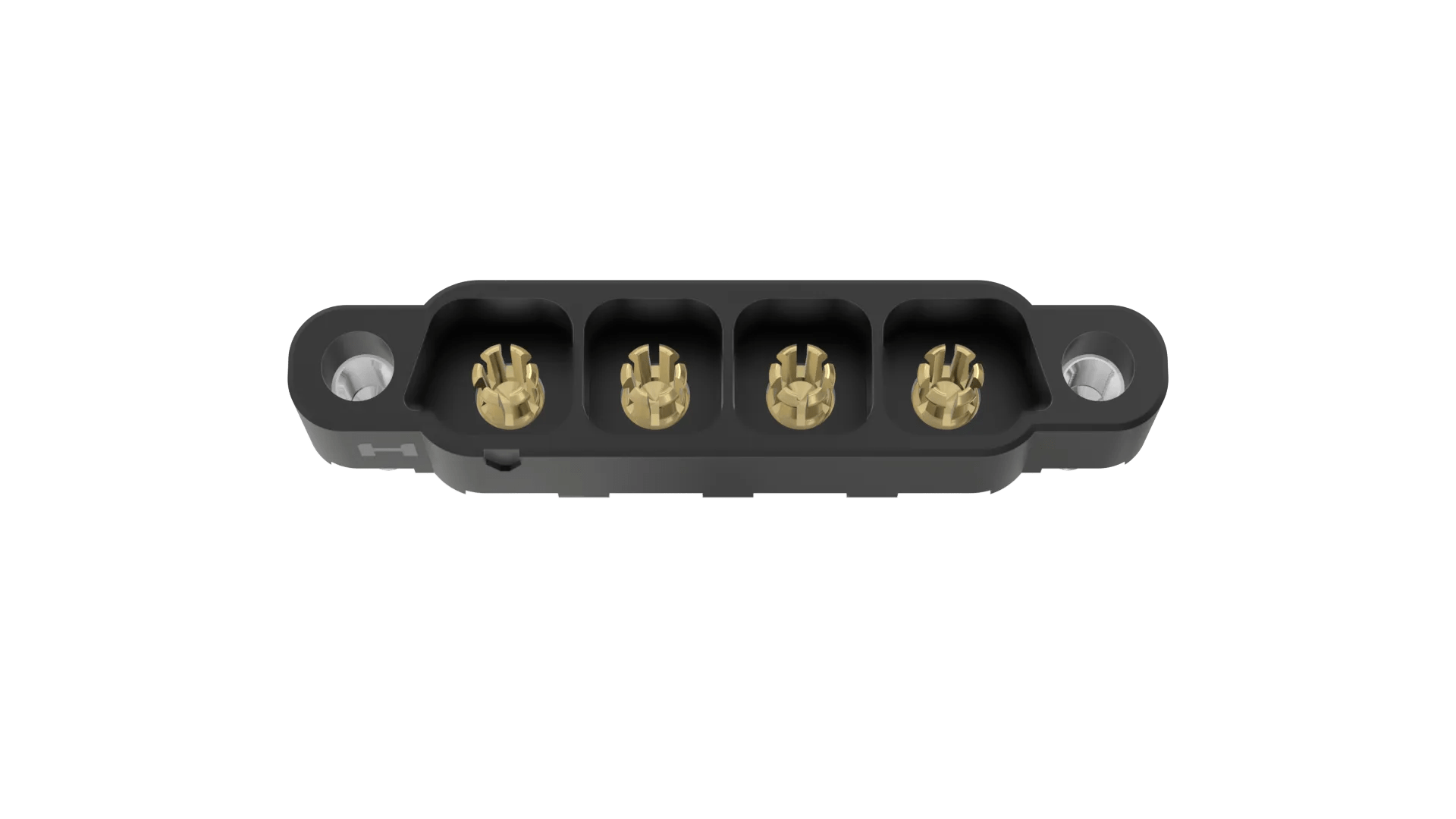

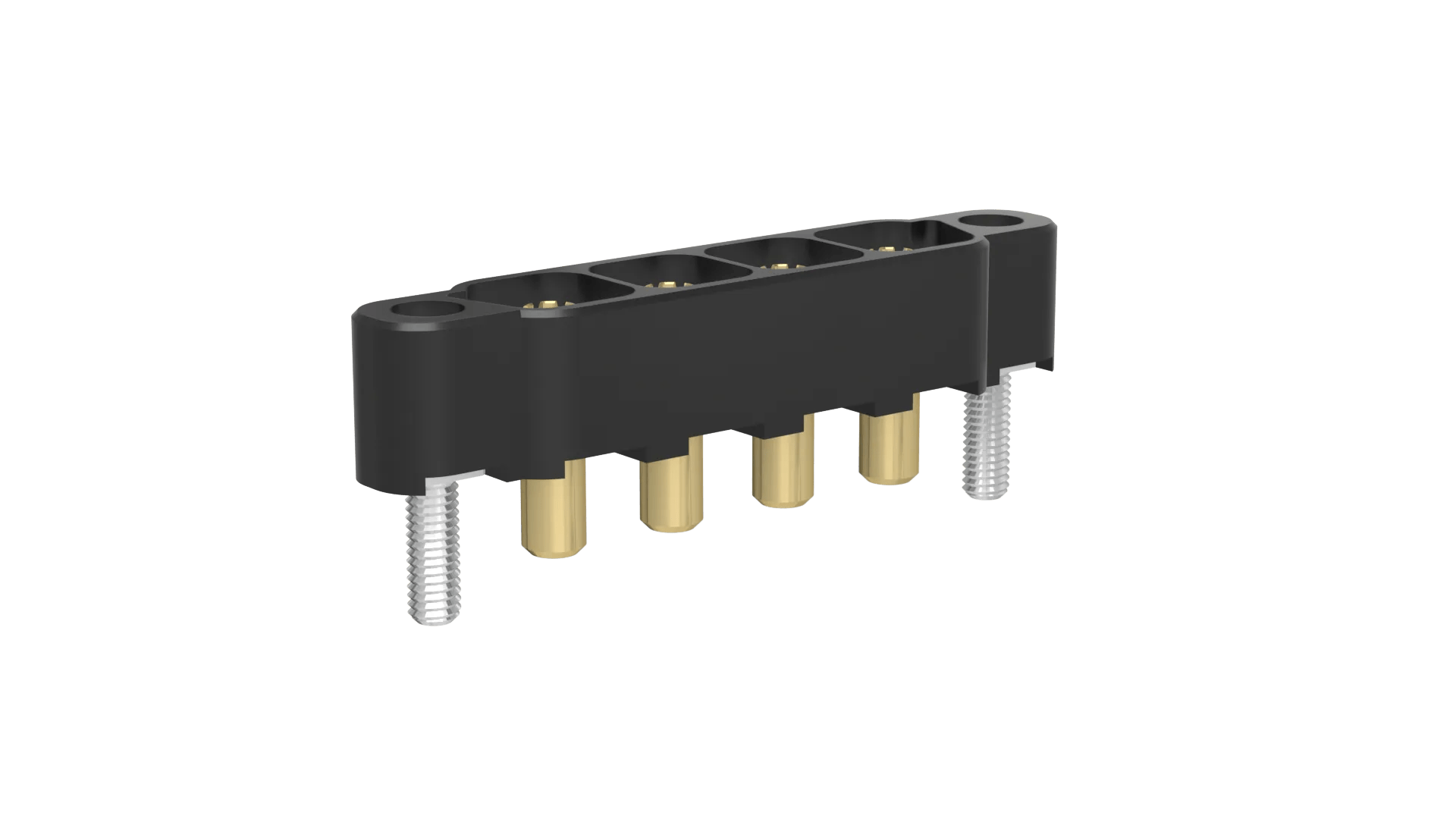

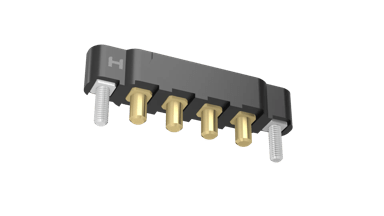

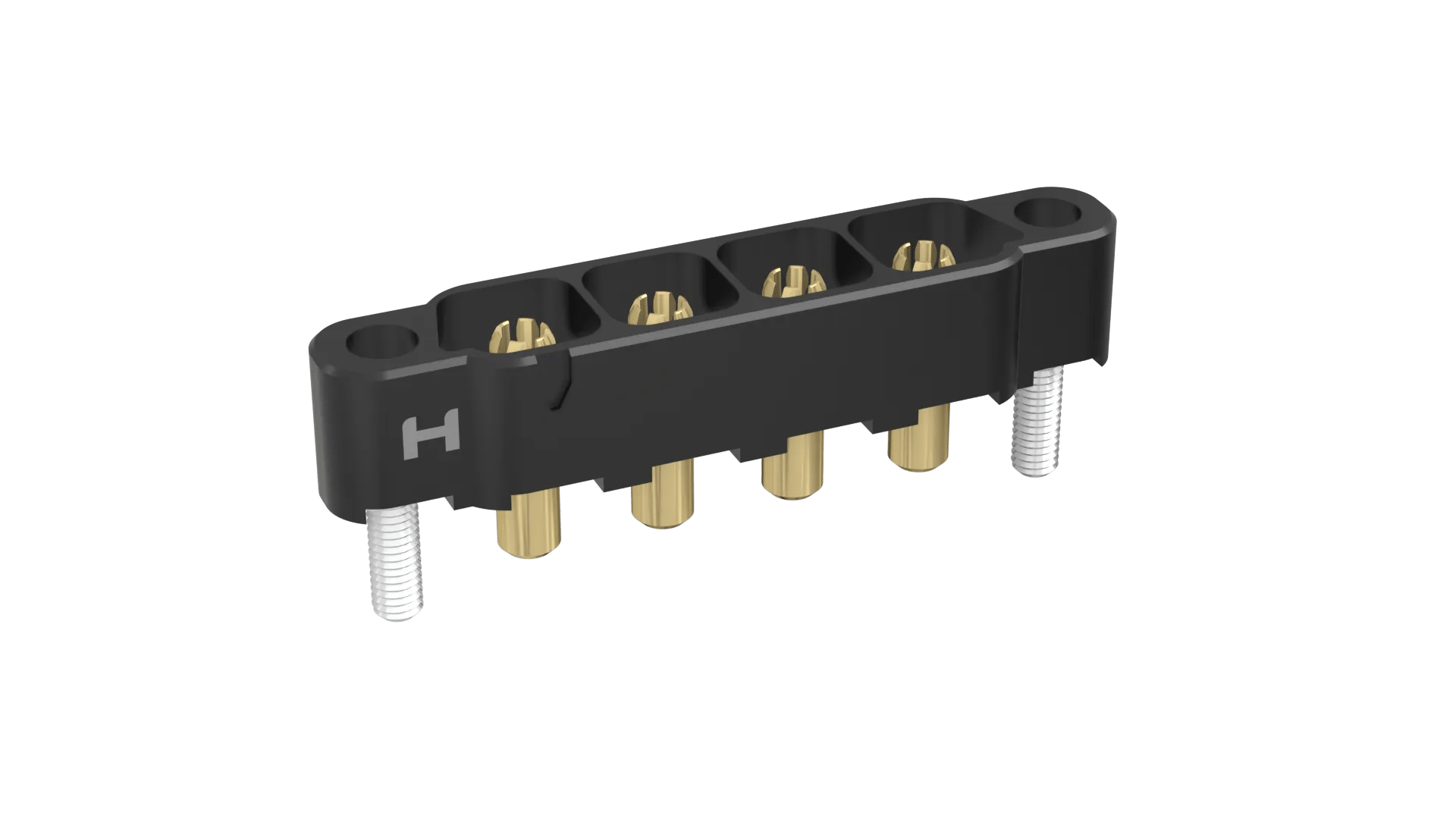

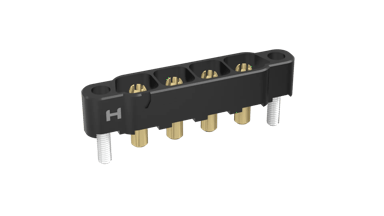

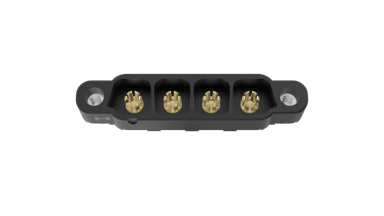

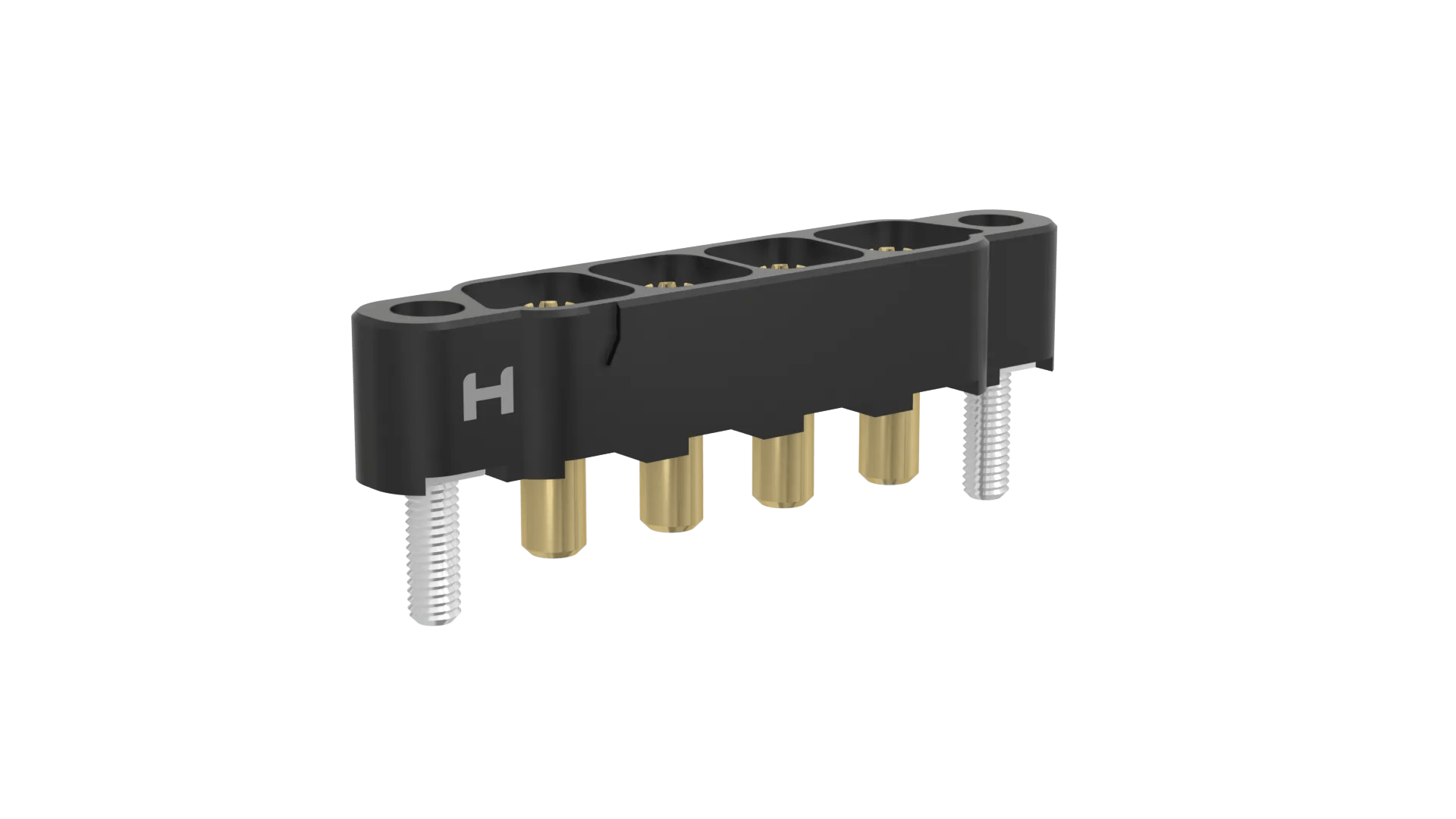

Image may be representative. Refer to the product title for more information.
Male plug Single Row straight (vertical) connector, throughboard 5.9mm PCB terminations - 4 contacts. Fitted with threaded screw fixings and 8.6mm board mount studs. Use slotted nut KA1-4240000 for board mount retention.
Individually shrouded recessed contacts - Gold finish on contact area and termination. Supplied with pick and place caps, in tube.
For complete pin numbering or pin out information, see Component Specification C052XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Internal Thread Fixing with Board/Front Panel Mount
Number of Rows
1
Connector Orientation
Straight
Country of Origin
GB
Side Stackable
No
Number of Power/Coax Contacts
4
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
60A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
PPS
Base Material of Contact
Beryllium Copper
Flammability Rating
UL94V-0
Packaging Style
Tube
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
8.50mm (0.335")
Weight
10.456g
Dimensions
50.00 x 10.50 x 17.90
Thread Size
M3
PC Tail Length
5.90mm
Height of Connector above PCB
9.50mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - KA1-MV2XX05M7.pdf
C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Kona contacts
Product Information
Catalog page - Kona Specification + Pin Numbering + Mating Profile
Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability
Product Datasheet - Kona range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for KA1-MV2XX05M7 series
RoHS - KA1-MV20405M7
