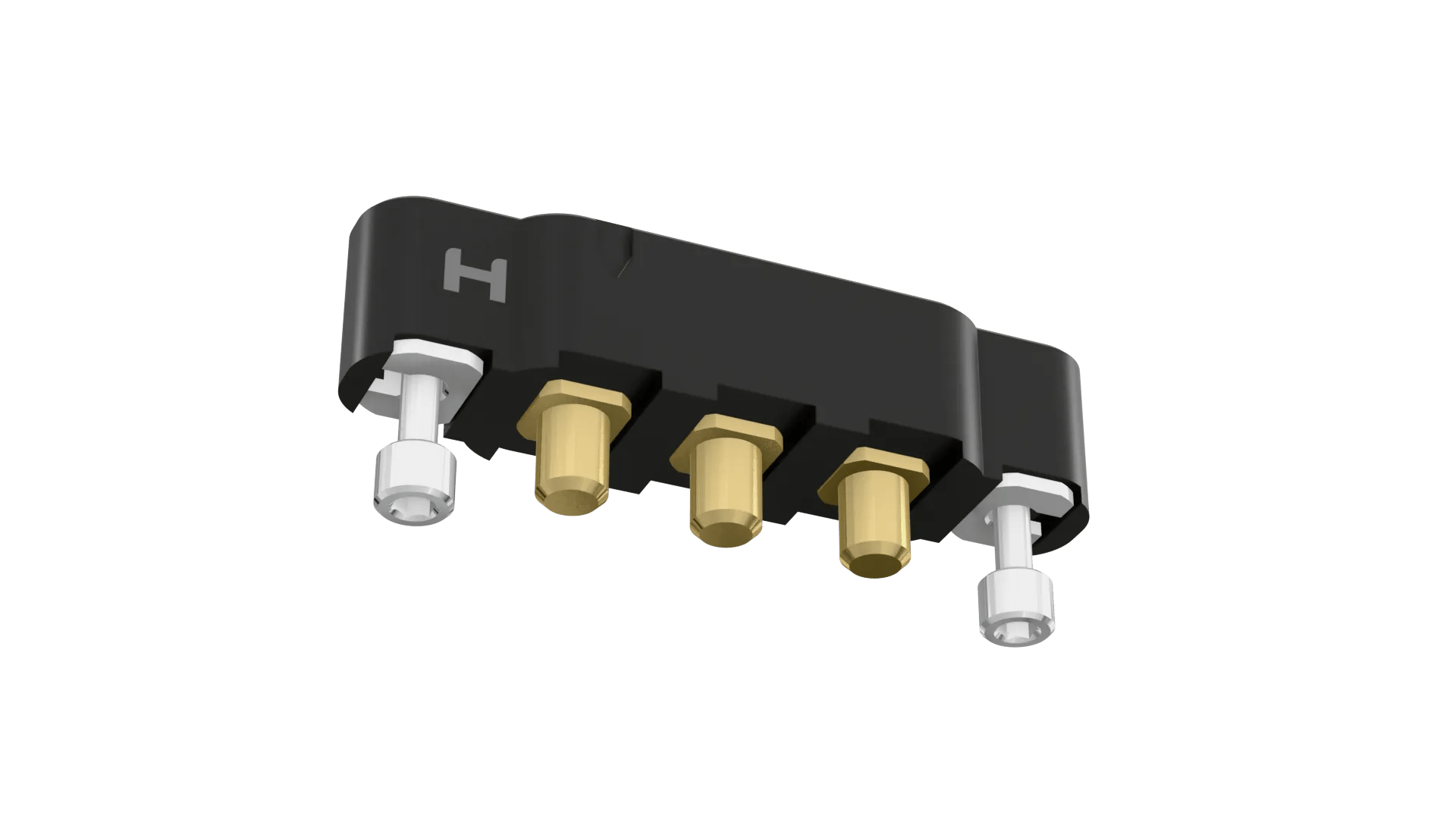

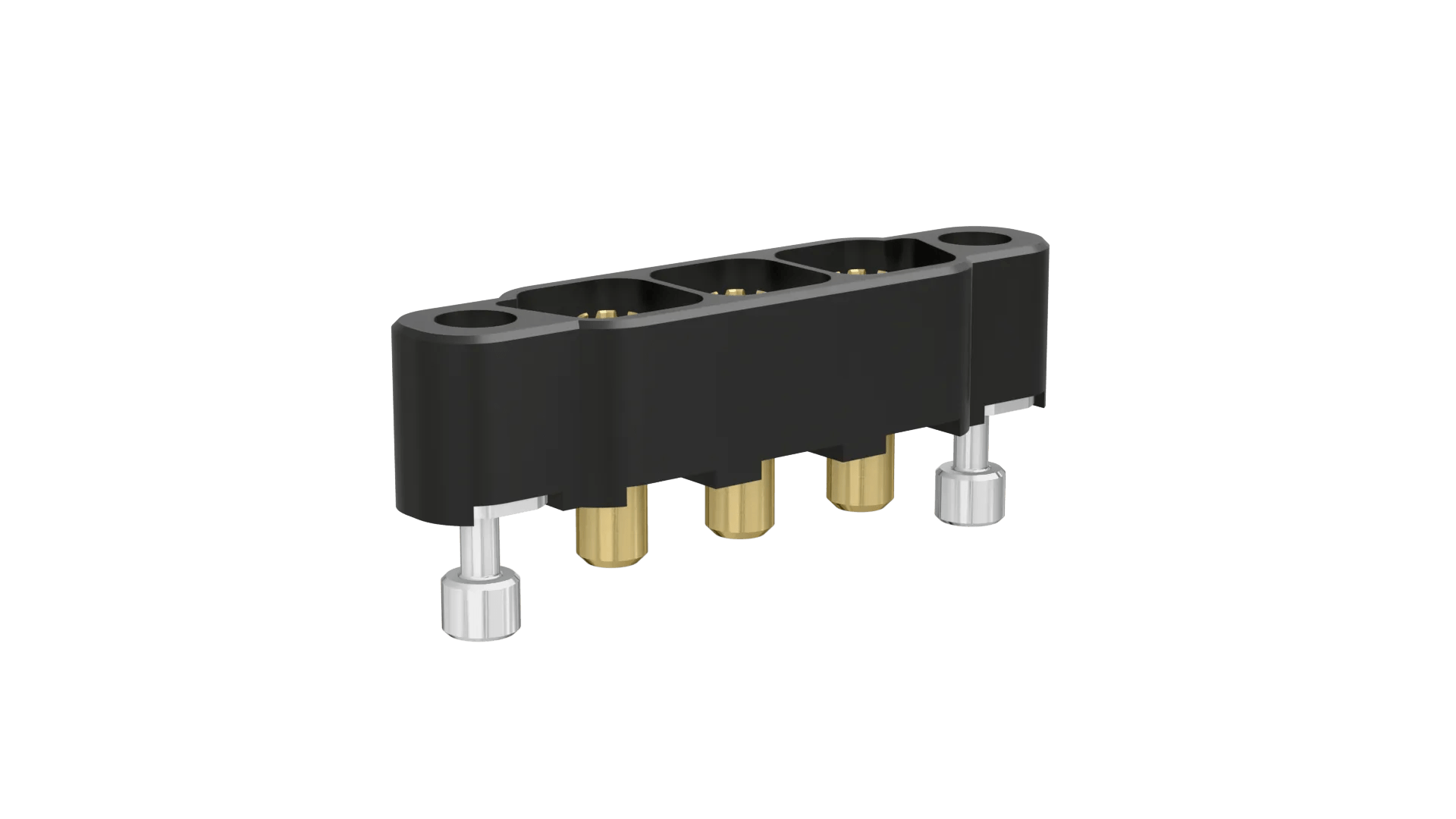

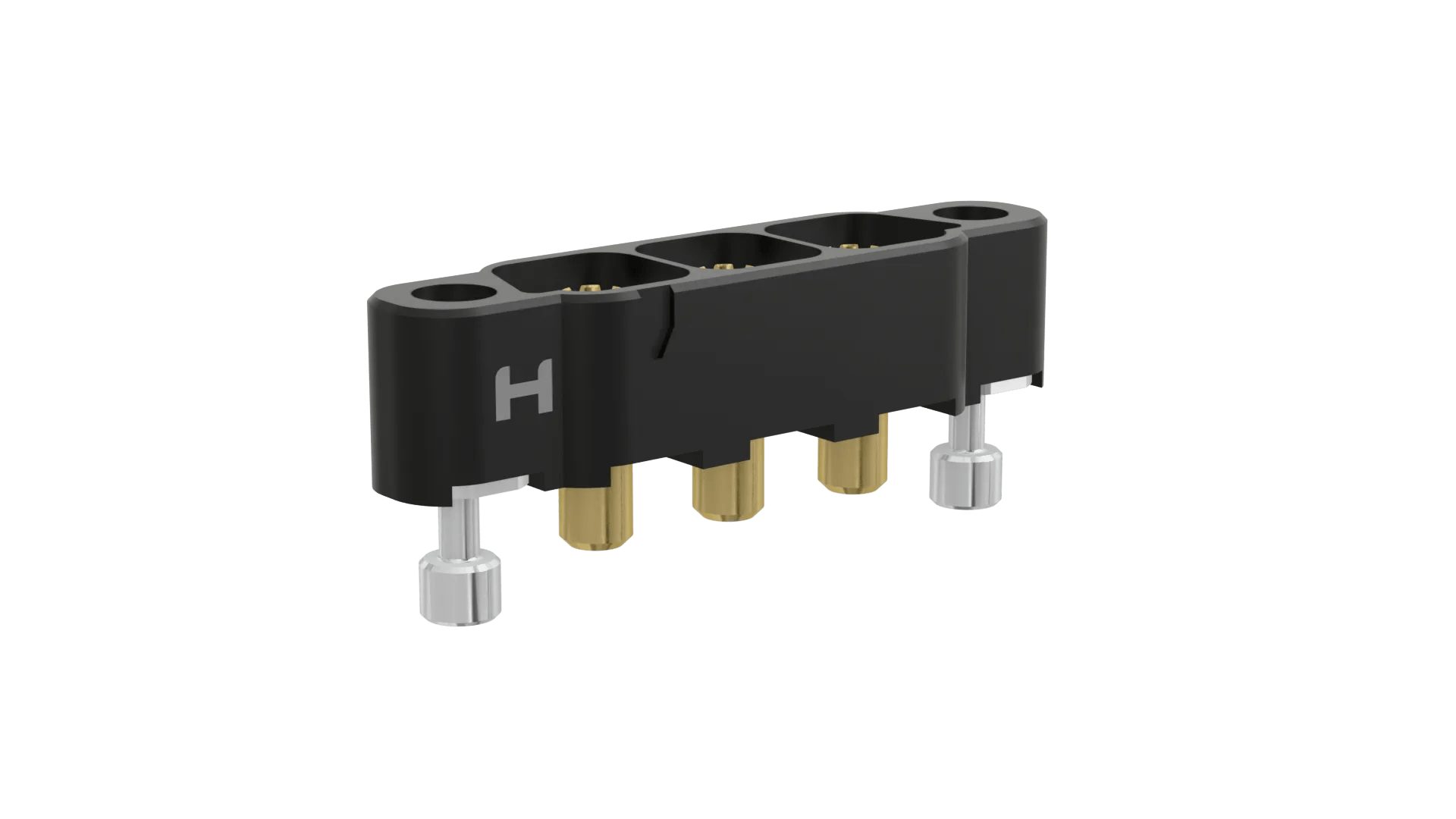

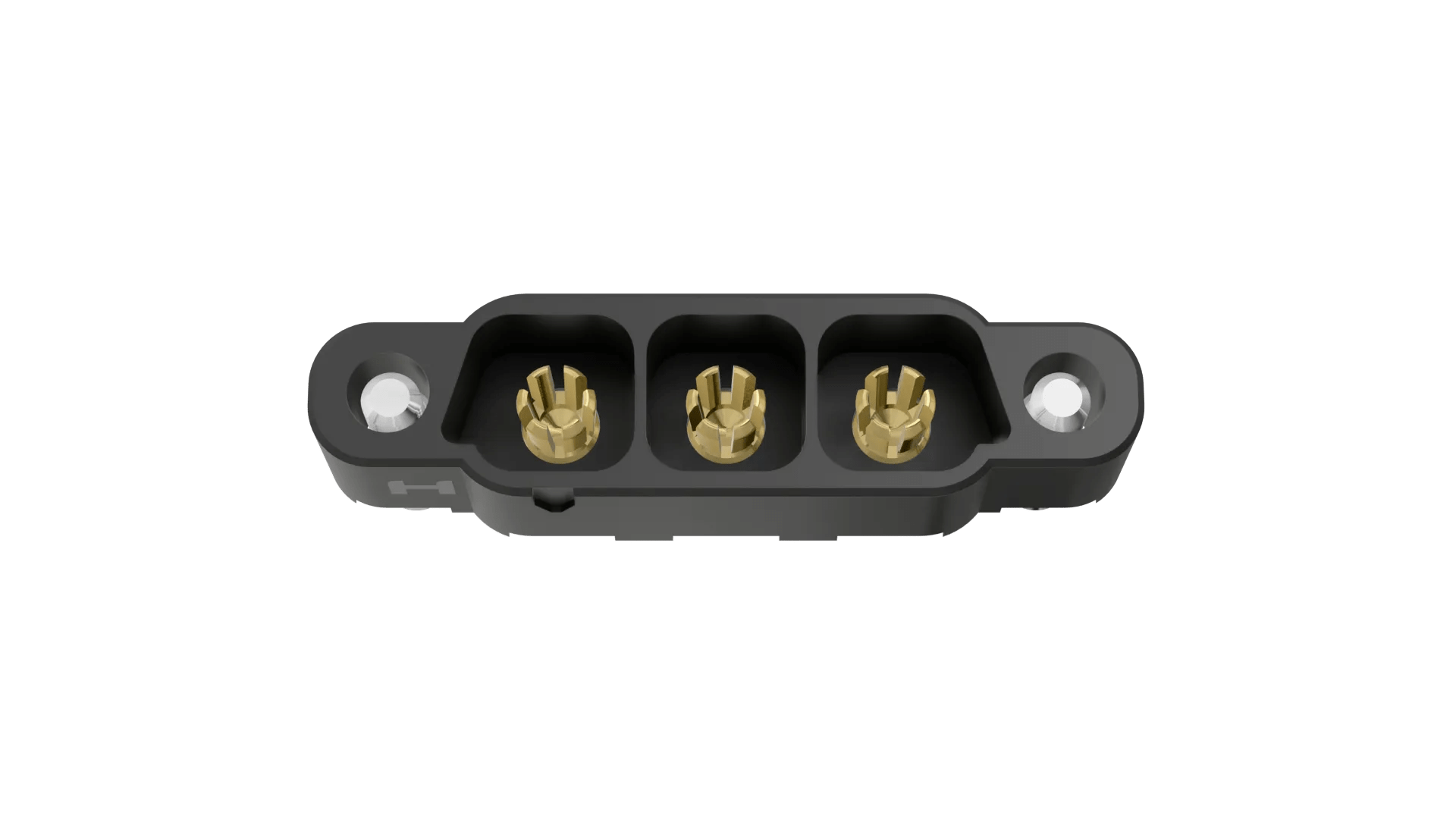

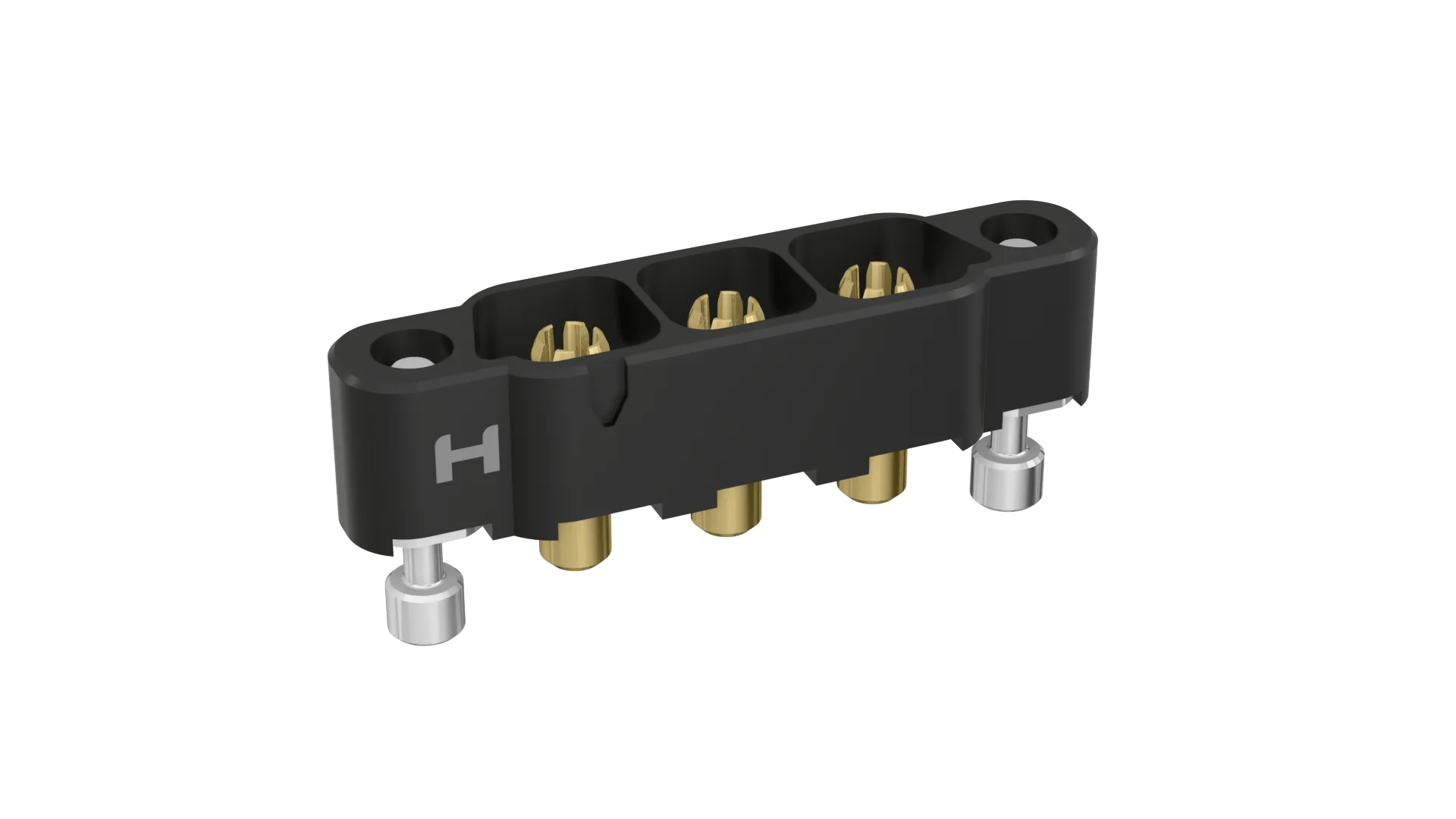

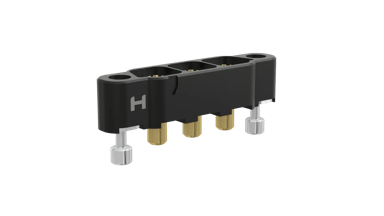

KA1-MV10305M2
3 Pos. Male SIL Vertical Throughboard Conn. Reverse Fix
8.50mm Pitch High-Reliability Connector - Kona
Loading… Check availability
7 similar products View products
Traceparts account required
Product Description
- Single Row Polarized Male 4.5mm PC Tail vertical throughboard connector with individually shrouded recessed contacts – 3 contacts.
- Includes fitted reverse fix mate-before-lock floating screws with Hex Socket head. Gold finish on contact area and termination. Supplied with pick and place caps, in tube.
- For complete pin numbering or pin out information, see Component Specification C052XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
8.50mm (0.335")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Current Rating:
60A max per contact
Operating Temperature:
-65°C to +150°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Floating Screw-Lock with Hex Socket Head (Reverse Fix)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Signal Contacts:
3
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
8.914g
Overall Dimensions (L x W x D) in mm:
41.50 x 10.50 x 15.20
Thread Size:
M3
Height of Connector above PCB:
9.50mm
Length of Throughboard Tail:
4.50mm
Mating Profiles:
Frequently Asked Questions Ask a Question
On the Kona series is the temperature rise shown in the test data the contact temperature rise or overall connector temperature rise?
In the Test Report Summary HT076, each connector tested is wired in series, as shown in the diagram and explained in section 3.2. This means the current passes through all contacts in each size connector tested, so the temperature rise will be for the whole connector. If you need any further assistance on this, please do contact one of our Experts.
Was this answer useful?
What’s the derate curve for Kona connections?
You can find derate curves for the mated connectors in the Test Report HT076.
Was this answer useful?
What torque value do you recommend for the screw-locks?
If you need to tighten your fixings to a torque setting for longer term installation, our recommendation is 22-25Ncm for both screw-locks and board/panel mount fixings. You can find this value stated in the Component Specification for Kona.
Was this answer useful?
What’s the gold plating thickness on this connector?
Gold thickness on both male and female connectors is 0.76-1.00 microns (30-40 microinches) over a nickel undercoat. Please also consult our Support article on plating thicknesses for all our high-reliability connectors, where you can download a statement with more detailed information.
Was this answer useful?
What is the pin numbering for a Kona connector?
Each housing is marked with a number 1 contact identifier in the plastic of the housing body. Once you find this, simply count along the row from that position.
Was this answer useful?
Do I need a tool to fasten these connectors together?
Yes, you will need a 2mm A/F hex driver (or allen key). You can either use this to hand-tighten, or achieve the recommended torque of 22-25Ncm.
Was this answer useful?
